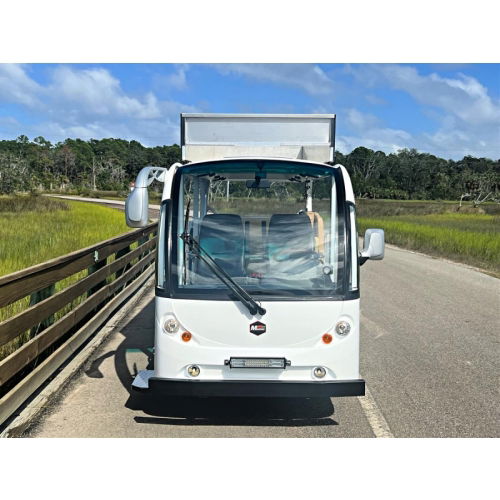

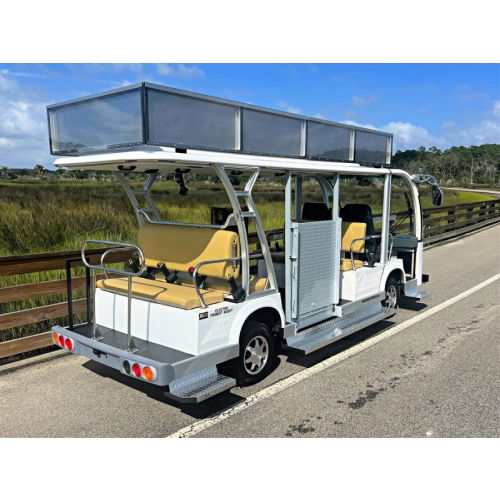

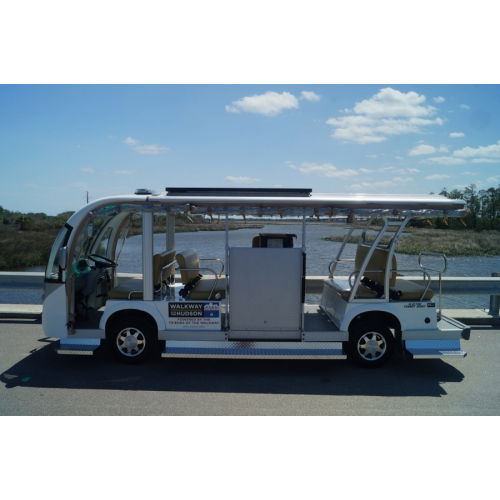

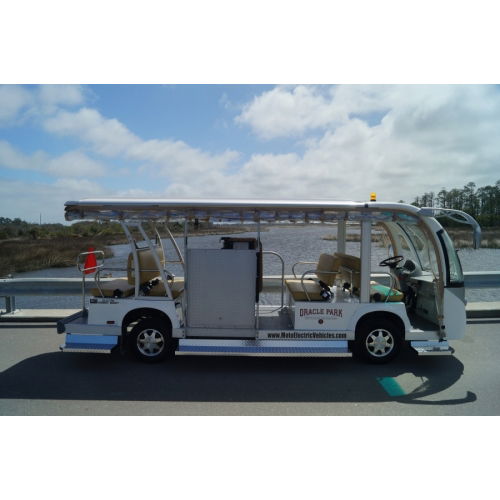

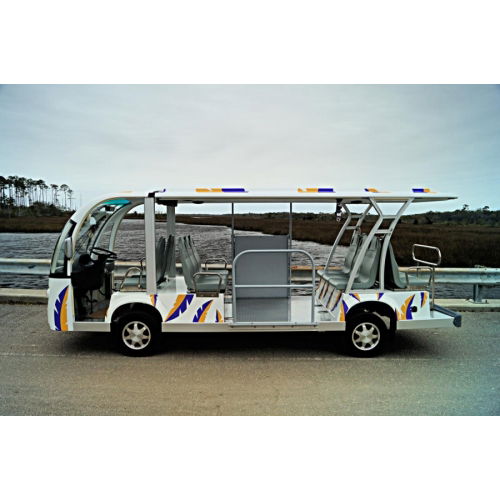

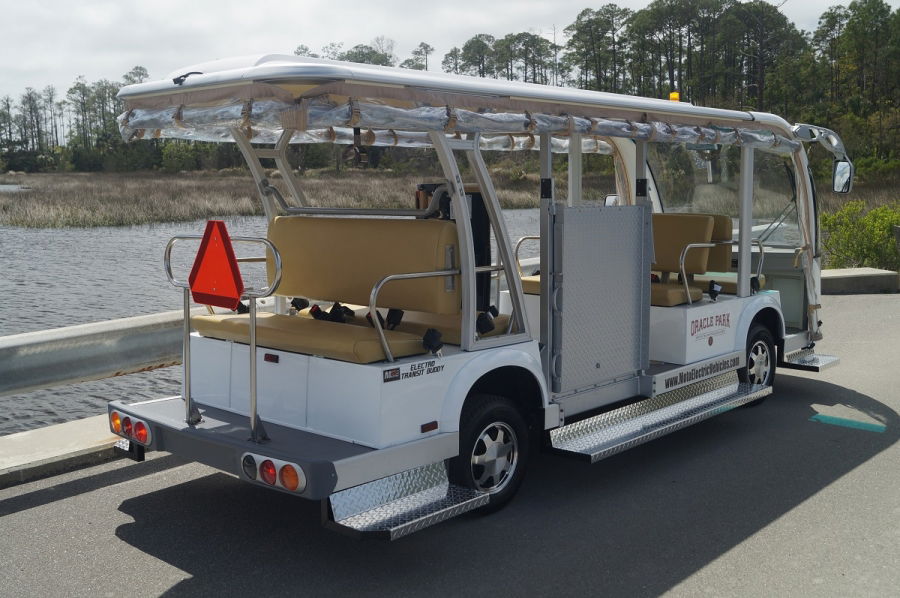

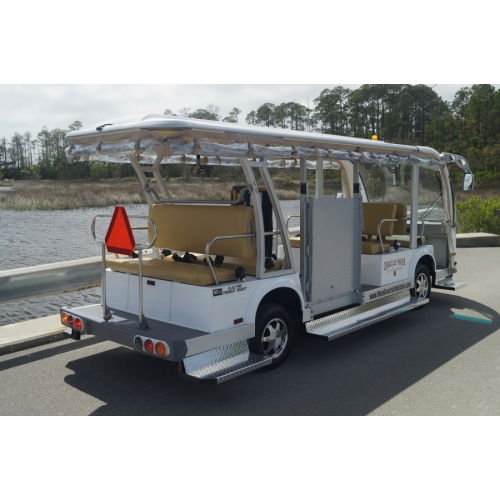

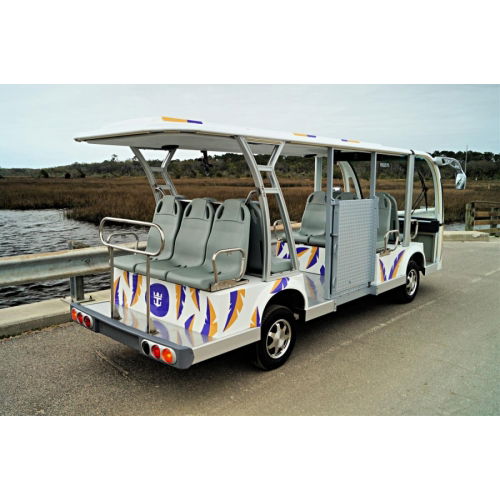

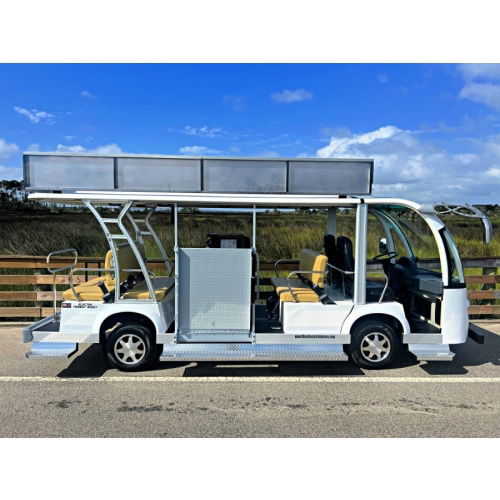

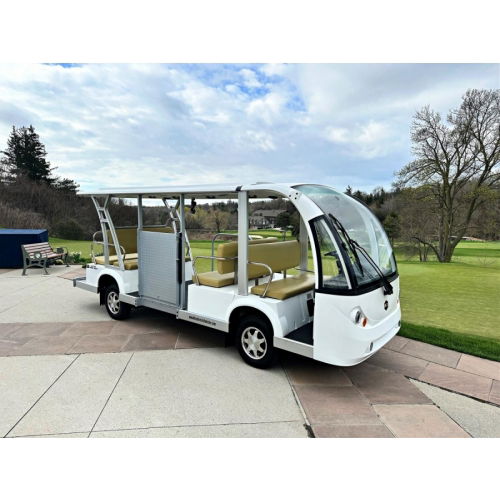

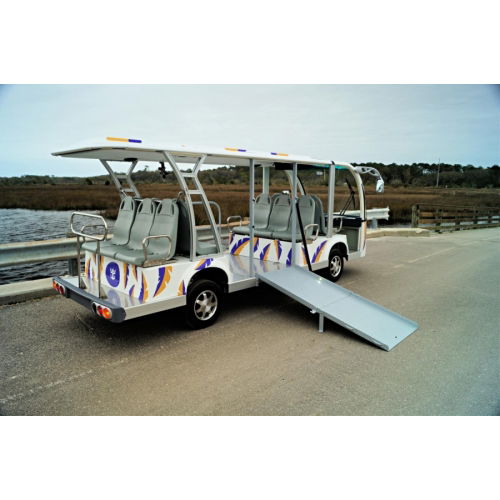

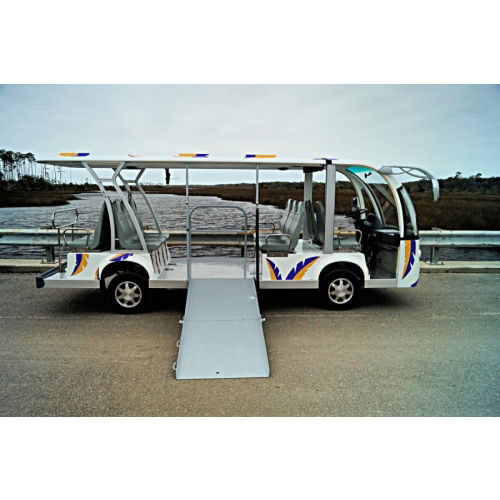

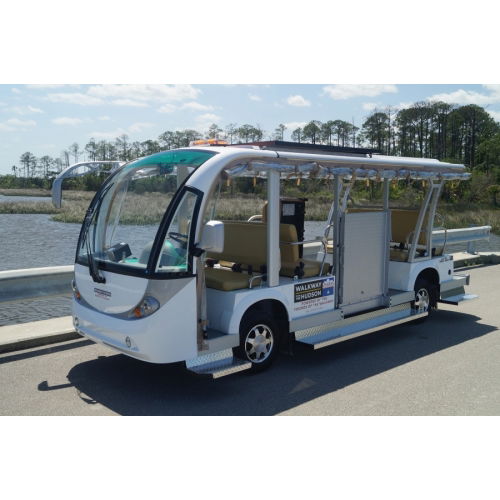

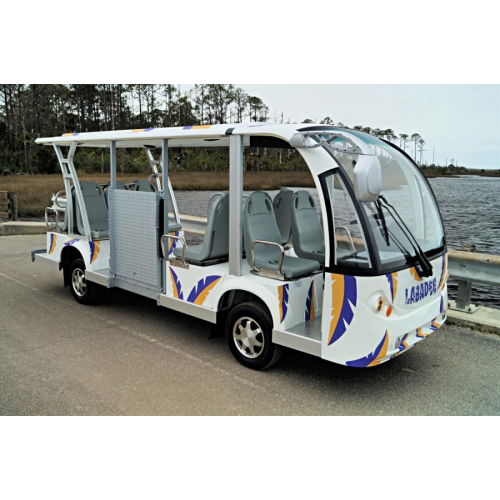

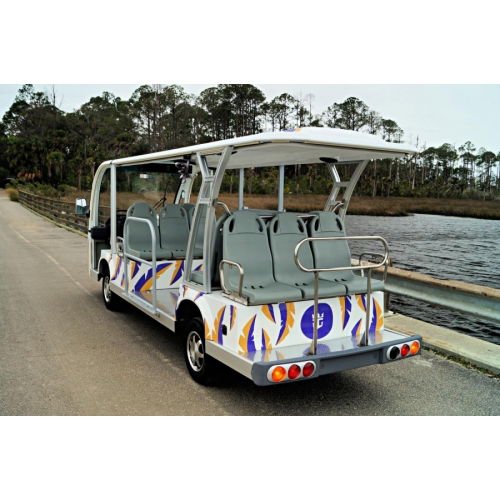

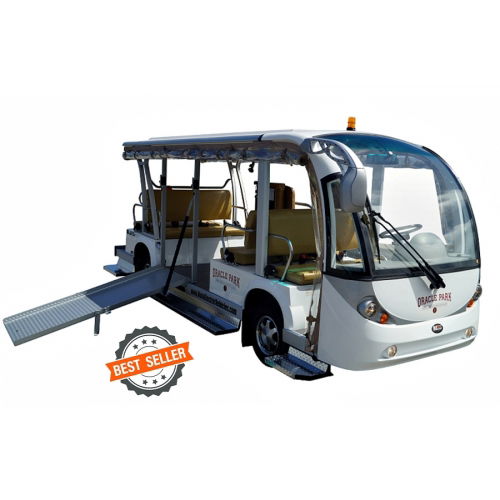

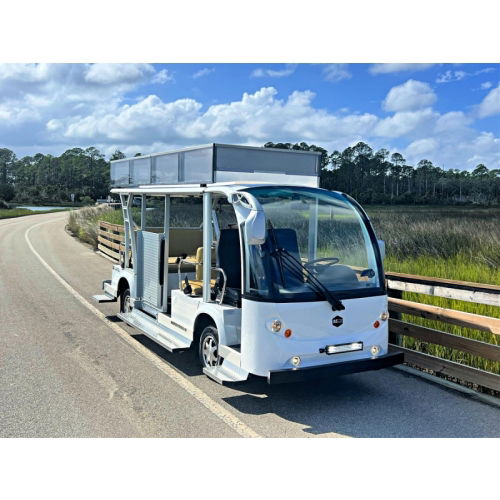

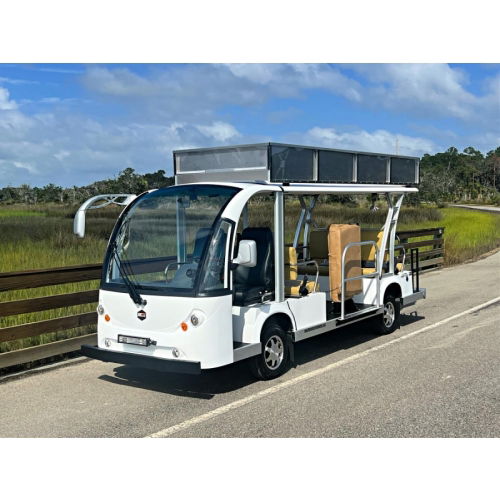

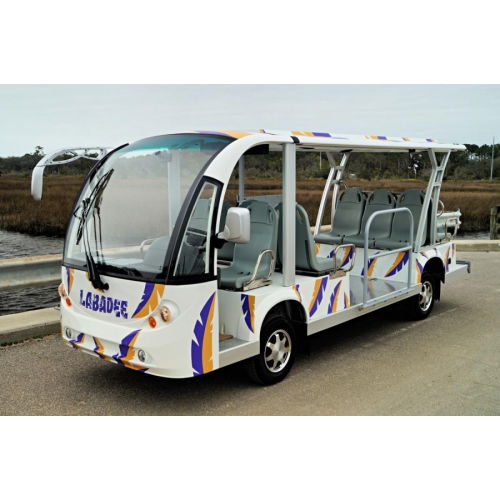

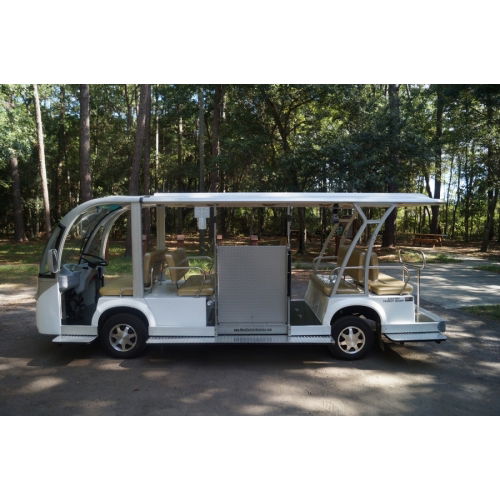

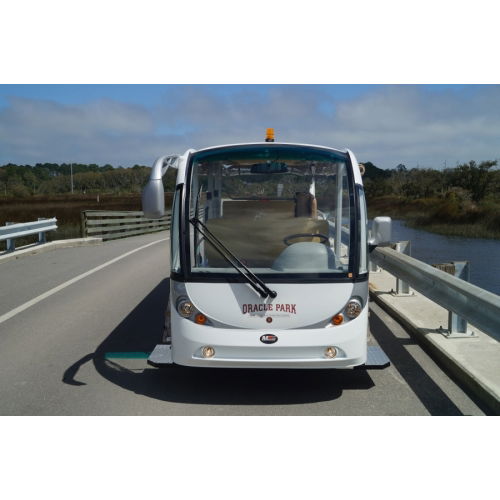

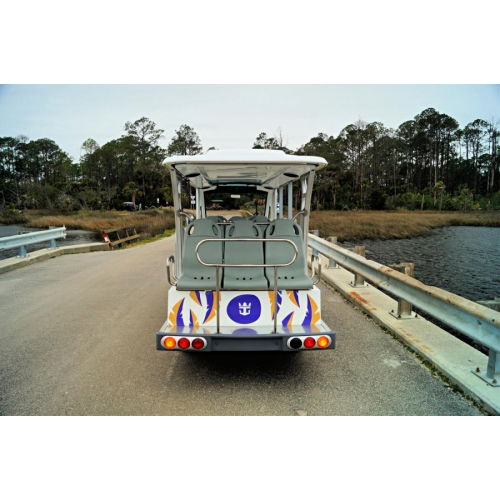

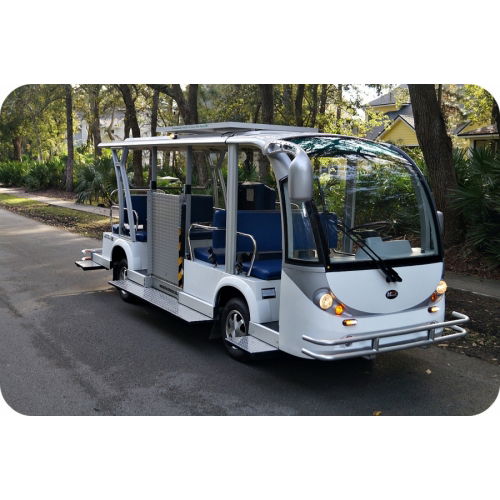

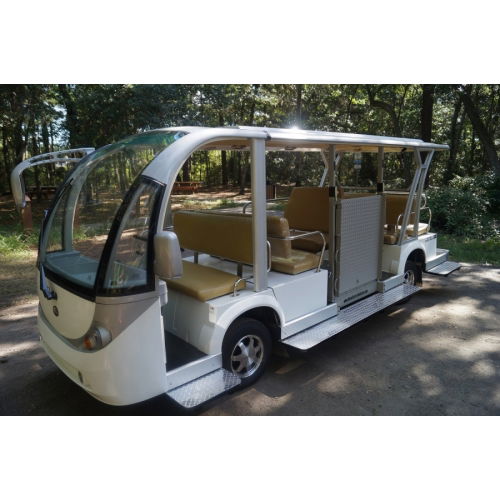

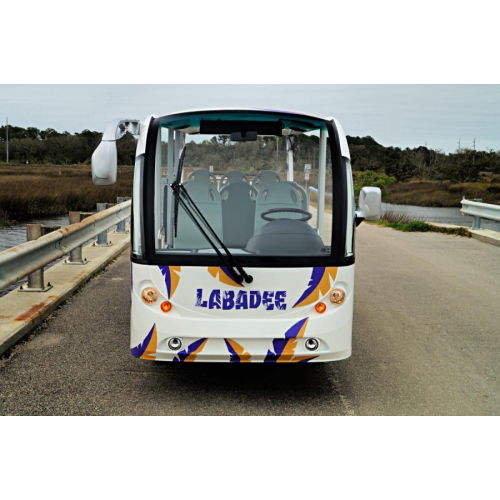

MotoEV Electro Transit Buddy 11 Passenger ADA Shuttle

SKU # ETB-11PADA
$ 42,995.00

Our fine line of MotoEV Transit Buddy Shuttles offer several models which will serve those who need the ability to carry wheelchair passengers as well.

Call or Contact for More Information: 855-339-8333

Loading Form..
DESCRIPTION

Our fine line of MotoEV Transit Buddy Shuttles offer several models which will serve those who need the ability to carry wheelchair passengers as well. We are the experts at all issues pertaining to transporting wheelchairs in electric vehicles and all ADA regulations as well. Depending on whether you need one or two wheelchair positions, we have the proper vehicle for your needs. We have open air models as well as fully enclosed shuttles that can serve your wheelchair transportation needs. We specialize in knowing what requirements are necessary , if you just want a "wheelchair shuttle" or for those clients that must have an "ADA wheelchair shuttle".Please ask our sales representative which type of shuttle your particular application may require.

The MotoEV Transit Buddy line of vehicles are for those shuttle chores required around your Campus, Parking Lot, Town Center, Resort, or Facility. Some of these models may hold up to 28 passengers when our tag along trailer is purchased! With this option, a second bank of batteries can be installed within the trailer to increase travel distances greatly! On your MotoEV Transit Buddy,  we can add many options such as back up cameras, DVD Players, heaters, fans and even air conditioning when necessary! Smaller shuttles have a 48-volt system as a power source with a single battery charger. Our larger shuttles (12-28 Passenger Shuttles) contain two 48 volt systems for the longer range and quicker charging than a 72 volt “series” battery system. Our shuttles come standard with two chargers not one and each charger is responsible to charge only one bank of 48 volts of batteries. This decreases necessary charging time by half versus having one charger responsible for charging all batteries. Several models will qualify for the Low Speed Vehicle standards necessary to drive them on public roadways as well. Please consult a Moto Electric Salesperson for more specific details on this requirement.



Our  Transit Shuttle Vehicles come equipped with a 7.5Kw AC Motor (10.1 Hp) upgraded motor but several other motor options are available.



NOTE: THE 11 PASSENGER ADA ELECTRIC SHUTTLE DISPLAYED HAS THE FOLLOWING ACCESSORIES INSTALLED AT AN ADDITIONAL CHARGE:

  • CUSTOM BLUE SEATS
  • FRONT AND REAR RUGGED BUMPER
  • SMALL LED LIGHTS SURROUND SHUTTLE

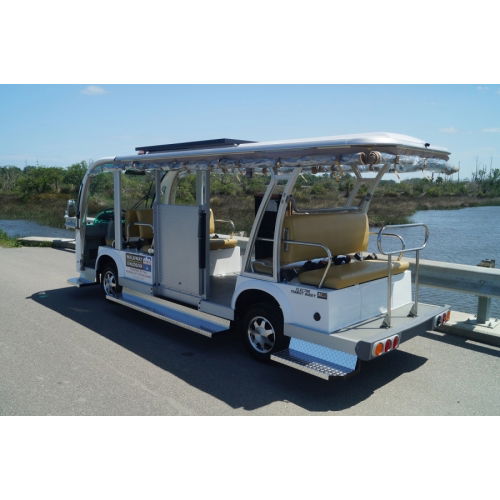

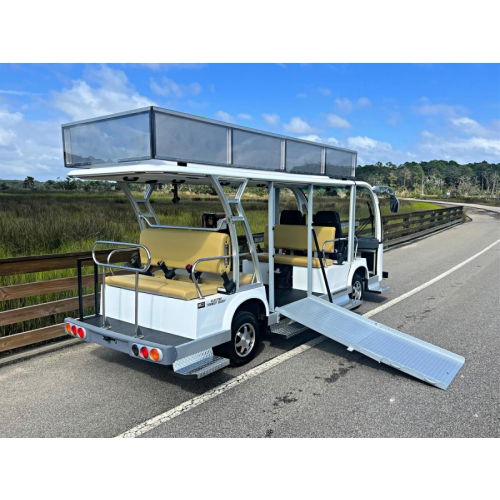

  • SOLAR PANEL 220W
  • EXTRA FLIP SEAT IN MIDDLE OF WHEELCHAIR SPACE
TECHNICAL SPECS
  • Model:MotoEV Electro Transit Buddy 11 Passenger ADA Shuttle
  • Product Code:ETB-11PADA
  • Passenger Capacity:11 People + 1 Wheelchair
  • Vehicle Dimensions:16.4' L X 4.88' W X 6.72' H
  • Gross Vehicle Weight:3,500 Lbs
  • Speed:Up to 25 MPH
  • Range:Up to 50 miles (full capacity)
  • Climb:20% grade (full capacity)
  • Electric Motor:7.5kw AC Motor (10.1 hp)
  • Min. Turning Radius:18.0 FT
  • Maxload: 3,000 Lbs.
  • Ground Clearance:7
  • Batteries:QTY 12- Trojan 105 or US2200
  • Charger:Eagle On Board
  • Braking System:Rear & Front Hydraulic Brakes w/ Rear Mechanical Parking Brake
  • Suspension:Independent/ Rear Steel Plate Suspension
  • Drive:Rear Wheel Drive
  • Body:Steel Framework + Fiberglass
  • Roof:Fiberglass Painted to Match Vehicle
  • Floor: Non- Slip Plastic
  • Windshield:AS1 DOT Approved
  • Warranty:* 3 Year Limited Standard Warranty Included On This Unit!
STANDARD FEATURES
  • DOT AS-1 Certified Windshield
  • Automatic Windshield Wiper
  • Stereo (AM/FM/CD/AUX) w/ Surround Sound
  • Internal PA System
  • On Board Smart Charging System
  • Curtis Programmable Sepex Controller on most models
  • Light Package (Head Lights, Tail Lights, Brake Lights,Turn Signals)
  • Horn
  • Deluxe Digital Dashboard
  • Speedometer
  • Battery Capacity Meter
  • Quick On Board Charge System
  • Grab Handle Bar Kit Included
  • High Back Bench Seating
  • Side and Rear View Mirrors

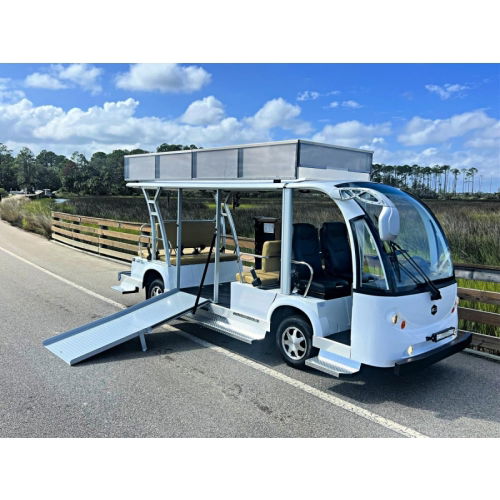

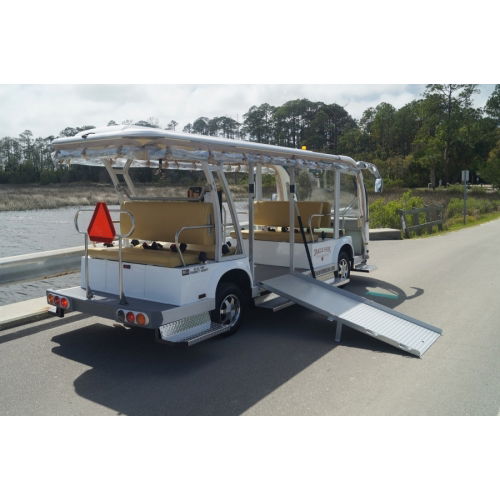

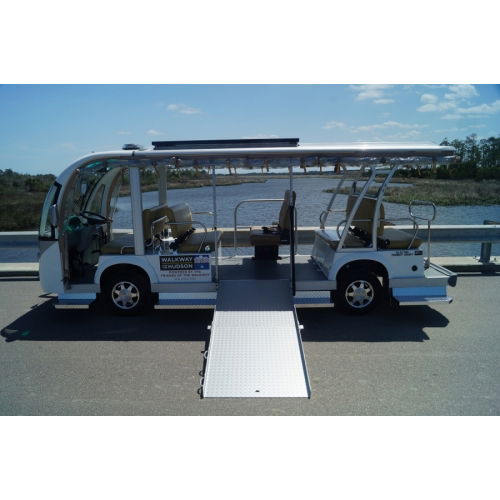

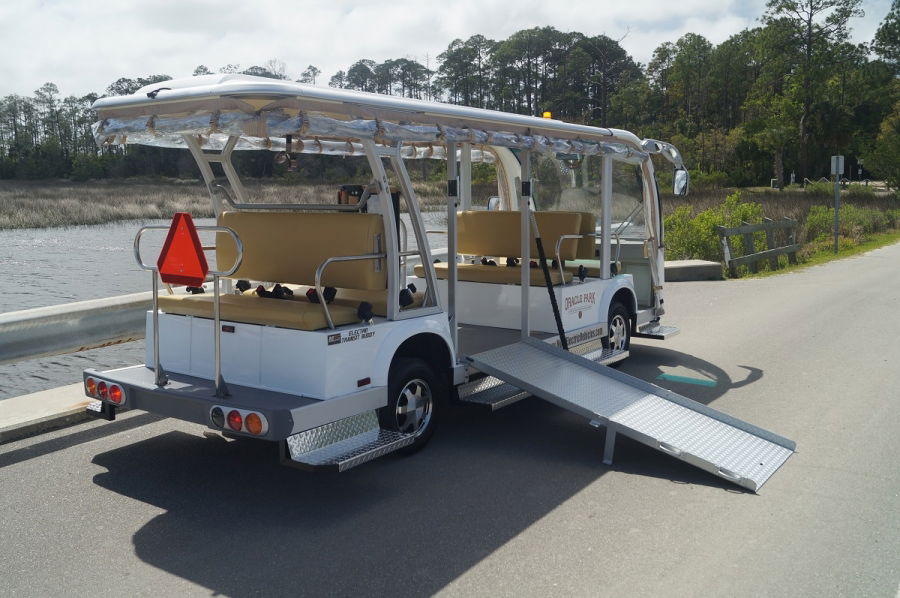

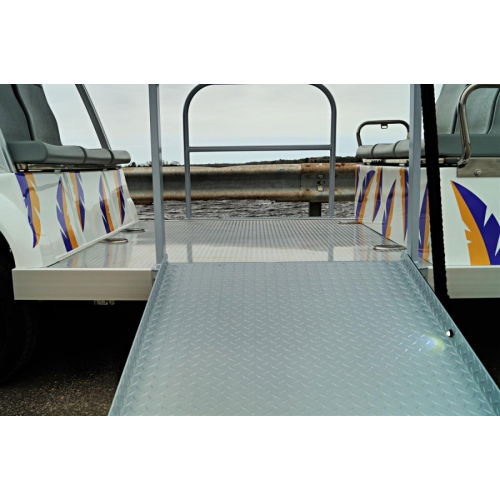

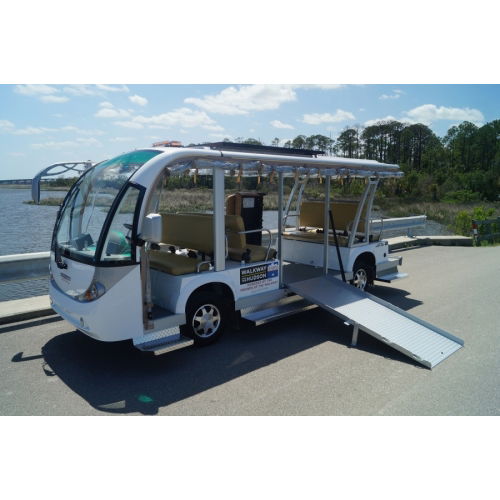

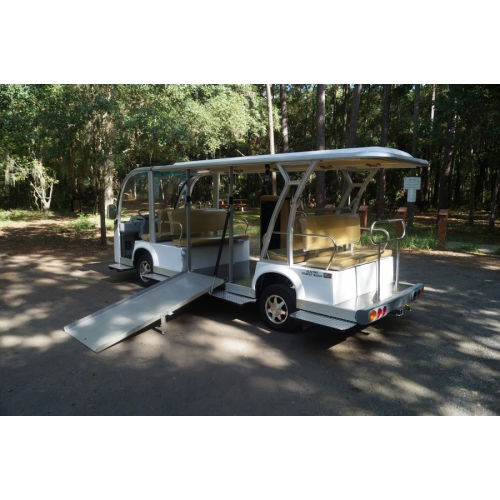

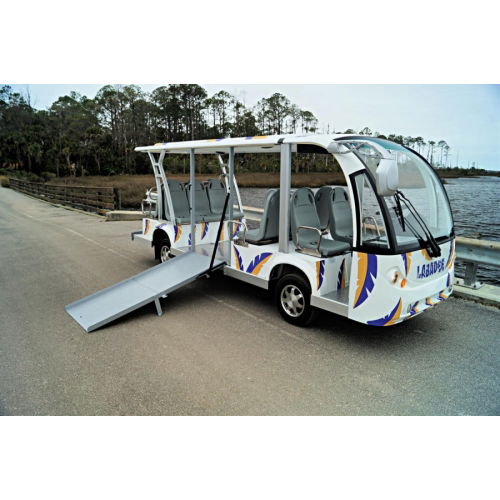

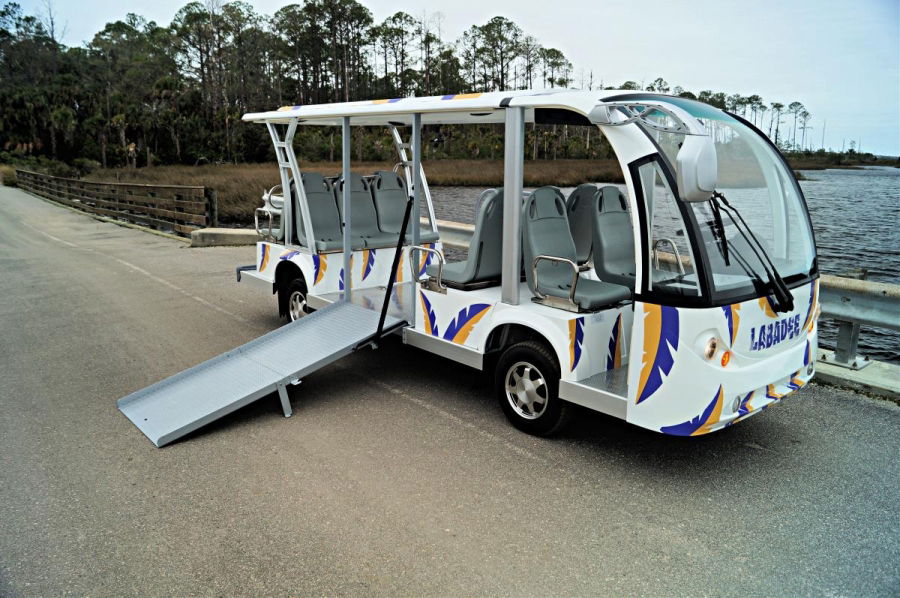

  • Manual Wheel Chair Ramp w/ Three Point Locking System
  • Q'Straint Tie Downs and Buckles Included
  • Driver Side Wheelchair Gate Included
  • Aluminum Rust Protected Rims
