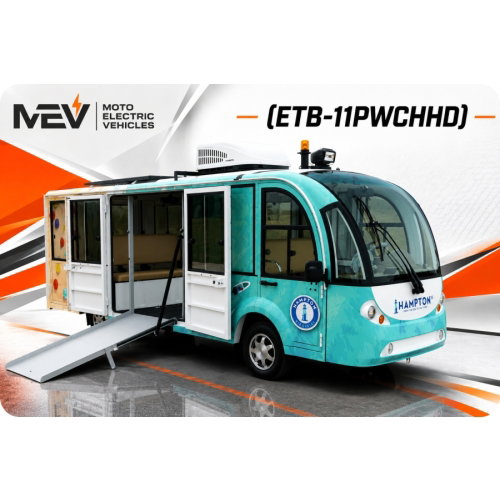

MotoEV Electro Transit Buddy 11 Passenger Hard Door Wheelchair Shuttle

SKU # ETB-11PWCHHD
$ 64,995.00

This 15 passenger shuttle bus is designed for comfort, efficiency, and accessibility—ideal for inclusive transport with secure wheelchair access.

Call or Contact for More Information: 855-339-8333

Loading Form..
DESCRIPTION

MotoEV Transit Buddy Shuttle Series

The MotoEV Transit Buddy Shuttle Series is engineered to provide reliable, efficient, and environmentally friendly transportation for campuses, resorts, hotels, municipalities, parking facilities, industrial complexes, airports, hospitals, senior living communities, universities, and mixed-use developments. Designed for comfort, performance, and low operating costs, Transit Buddy shuttles deliver a dependable solution for transporting passengers safely and efficiently.

Recognizing that accessibility is essential, MotoEV also offers the ETB-11PWCHHD (Hard Door) Wheelchair Accessible Shuttle, specifically designed to provide safe, convenient, and dignified transportation for passengers with mobility challenges. This model features a manually operated bi-fold wheelchair ramp, illuminated ramp lighting, Q'Straint wheelchair securement system with industry-leading tie-downs and occupant restraints, and a driver-side wheelchair gate. The ETB-11PWCHHD allows operators to comfortably transport 11 seated passengers plus one wheelchair occupant, making it an ideal solution for hospitals, rehabilitation centers, senior living communities, airports, government facilities, and any organization committed to inclusive transportation.

For operations requiring even greater passenger capacity, select Transit Buddy models can accommodate up to 46 passengers when paired with MotoEV's optional tag-along passenger trailer. This trailer can also be equipped with an additional battery bank, significantly increasing driving range while maintaining exceptional performance throughout the day.

MotoEV Transit Buddy shuttles can be customized with a wide variety of factory-installed options to meet your specific operational requirements, including:

  • Backup Camera Systems
  • Running Boards
  • Air Blowers
  • Heaters
  • Air Conditioning Units
  • Custom Vinyl Wraps
  • Company Logos
  • Additional Seating Configurations
  • Specialized Accessibility Options
  • And Much More!

Advanced Electric Powertrain

Unlike many competitive electric shuttles, MotoEV utilizes an advanced battery architecture designed for maximum efficiency, dependable performance, and reduced charging time. Transit Buddy models feature a robust 72-volt electric drive system with an onboard smart charger. Every Transit Buddy is equipped with an automatic drive system utilizing a simple Forward/Reverse selector, making operation intuitive, safe, and easy for virtually any driver.

Industry-Leading Efficiency

The MotoEV Transit Buddy delivers exceptional operating efficiency with a driving range of up to 200 miles per charge when equipped with the optional lithium battery package. Charging costs average approximately one cent per mile, making it one of the most economical passenger transportation solutions available.

Each Transit Buddy is equipped with an intelligent onboard smart charger featuring microprocessor-controlled charging technology. Once the batteries reach a full charge, the charger automatically stops charging to help maximize battery life while preventing overcharging.

Because the charger is permanently installed onboard, operators can conveniently opportunity charge the vehicle whenever a standard electrical outlet is available—during employee breaks, lunch periods, between shifts, or while parked—helping maximize vehicle availability throughout the day.

Built for Everyday Shuttle Service

With smooth acceleration, whisper-quiet operation, zero tailpipe emissions, and speeds of up to 18 MPH, the MotoEV Transit Buddy is the ideal transportation solution for environments where comfort, safety, accessibility, and sustainability are top priorities.

Whether transporting guests across a resort, students around a campus, employees through an industrial complex, patients at a medical facility, or residents within a senior living community, the Transit Buddy lineup delivers dependable performance and exceptional passenger comfort.

The MotoEV ETB-11PWCHHD Wheelchair Accessible Shuttle is powered by a durable 7.5 kW AC (10.1 HP) electric motor as standard equipment, delivering reliable, low-maintenance performance for demanding daily transportation applications. Additional motor configurations and factory-installed options are available to meet specialized operational requirements and customer-specific needs.

TECHNICAL SPECS
  • Model:MotoEV Electro Transit Buddy 11 Passenger Hard Door Wheelchair Shuttle
  • Product Code:ETB-11PWCHHD
  • Max Passanger Capacity:11 People + 1 Wheelchair
  • Vehicle Dimensions:203" x 78" W x 80" H
  • GVWR Weight:6,129 Lbs
  • Speed:Up to 18 MPH
  • Range:Up to 50 miles- Lead Acid | Up to 200 miles- w/ Lithium Option Added (full capacity)
  • Climb:20% grade (full capacity)
  • Electric Motor: 7.5 KW (10.1 Hp) AC MOTOR
  • Controller:1238 Curtis Controller
  • Turning Radius:18'
  • Steering System:Rack and Pinion with Electric Power Steering
  • Maxload: 2,932 Lbs
  • Ground Clearance:6.5"
  • Batteries:QTY 12 6v Lead Acid (Standard)
  • Charger:72v Dual Pro Eagle Charger
  • Braking:4 Wheel Hydraulic Braking System w/ Parking Brake
  • Suspension:Independent (Front) / Fixed Axle w/ Leaf Springs (Rear)
  • Drive:Rear Wheel Drive
  • Body:Coated Steel Chassis w/ Injected Molded Plastic Body and Aluminum Doors w/ Windows
  • Roof:Fiberglass Painted to Match Vehicle
  • Windshield:AS1 DOT Approved
  • Warranty:* 3/4 Year Limited Standard Warranty Included On This Unit! (Lithium Battery Option = 4 Years / Standard Lead Acid Batteries = 3 Years)
  • Length:203"
  • Width w/ Mirrors Folded In:65"
  • Width w/ Mirrors Extended:78"
  • Height:80"
  • Height With AC Unit:91"
  • Ground Clearance - Middle of Vehicle:14"
  • Ground Clearance - Rear of Vehicle (Differential):6.5"
  • Ground Clearance - Front of Vehicle (Tension Rod Assembly):8.5"
  • Wheelbase (Front Tire Center to Rear Tire Center):105.5"
  • Front and Rear Track Width (LH Tire Center to RH Tire Center):48"
  • Front Overhang (Center of Front Tire to Front Bumper):45"
  • Rear Overhang (Center of Rear Tire to Rear Bumper):51"
  • Net Weight of Electric Vehicle without Battery and Charger:2,413 Lbs
  • Max Loading Weight:2,932 Lbs
  • Battery and Charger Weight:784 Lbs
  • Total Gross Vehicle Weight Rating (GVWR):6,129 Lbs
STANDARD FEATURES
  • DOT AS-1 Certified Windshield
  • Automatic Windshield Wiper
  • Marine Grade Blue Tooth Sound Bar
  • Wireless Headset Microphone w/ Aux Output for Speaker Bar
  • LED Headlights, Tail Lights, Brake Lights, Turn Signals, Fog Lights, and Reverse Light
  • Deluxe Digital Dashboard with Speedometer, Odometer, Volt Meter, Amp Meter
  • Battery Meter
  • Horn
  • Side and Rear View Mirrors
  • 12 Inch DOT Tires with Aluminum Wheels
  • Aluminum Doors w/ Sliding Windows and Door Locks * Doors are built to Not be Removed*
  • QTY 4 Interior Dome Lights
  • QTY 3 Oscillating Interior Fans
  • Electric Power Steering
  • Parking Brake
  • Easy Access Diagnostic Port for Parameter Adjustments and Fault Code Readings
  • Manual Bi-Fold Wheelchair Ramp w/ Three Point Locking System
  • Q'Straint Tie Downs and Buckles Included
  • Driver Side Wheelchair Gate Included
  • Automatic illuminated Wheelchair Ramp Light
