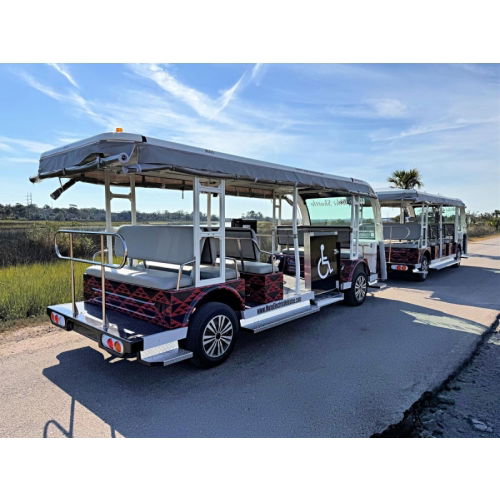

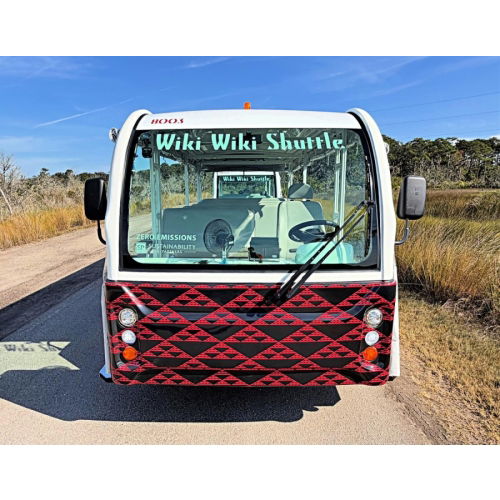

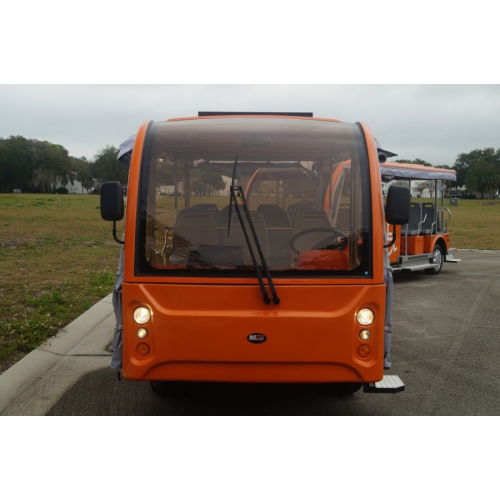

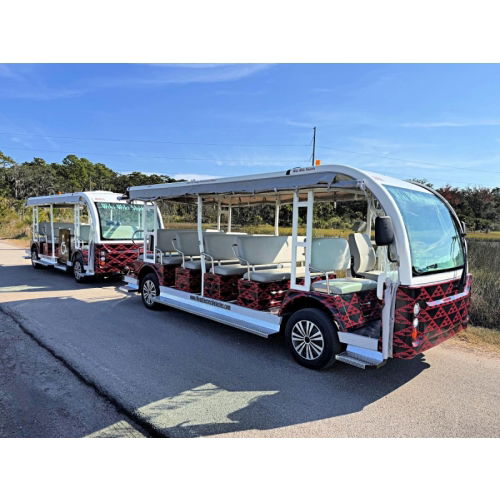

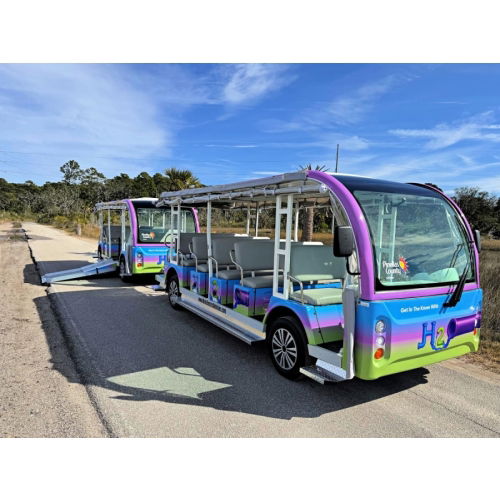

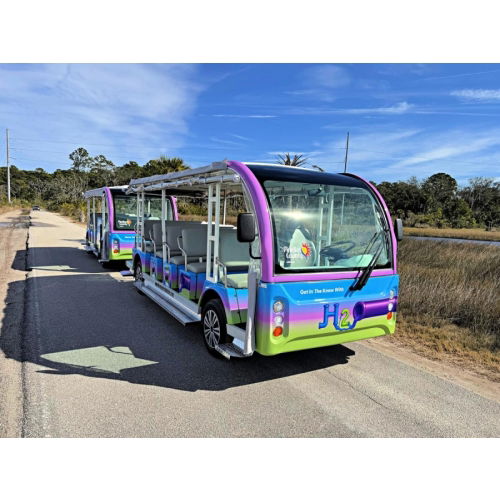

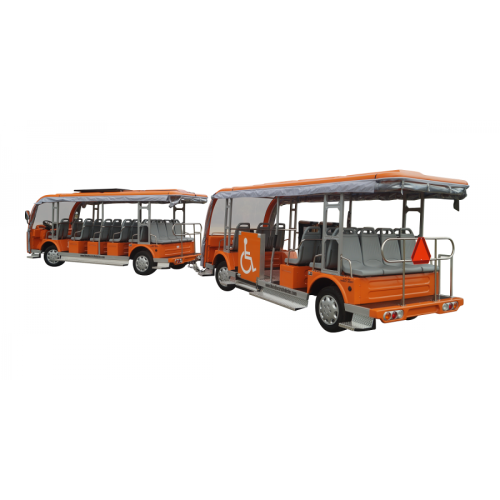

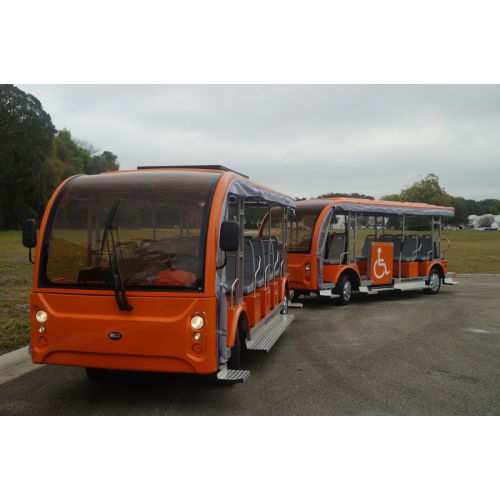

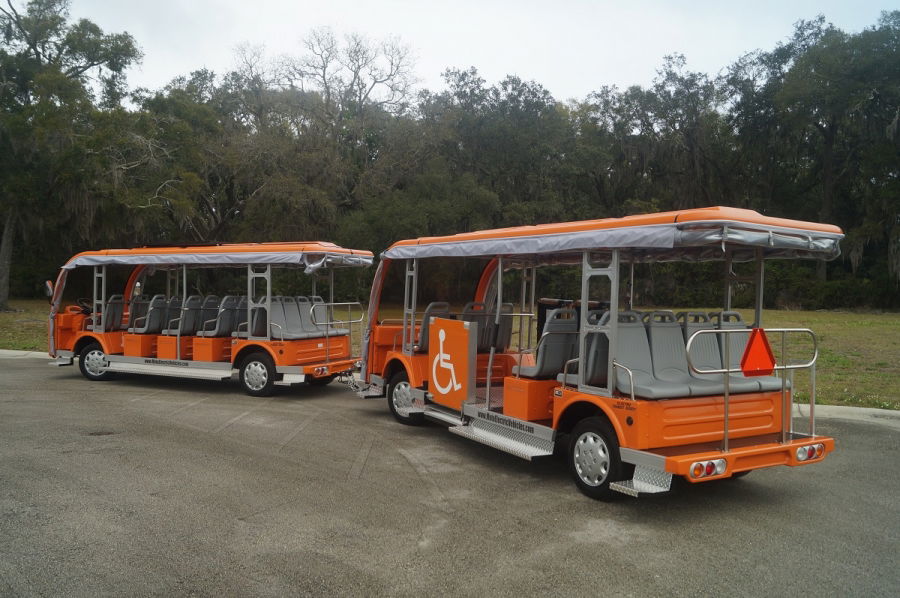

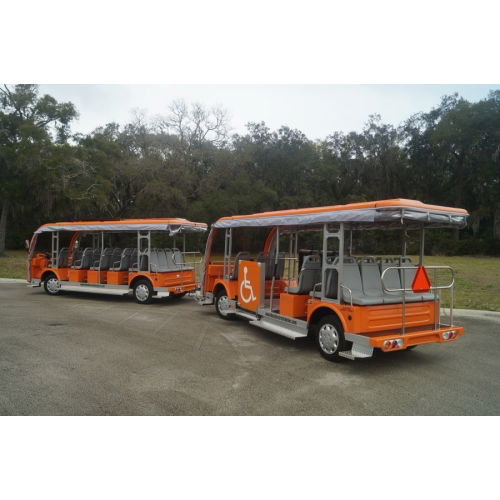

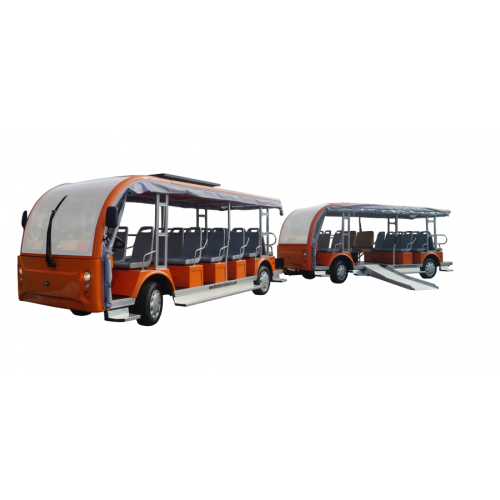

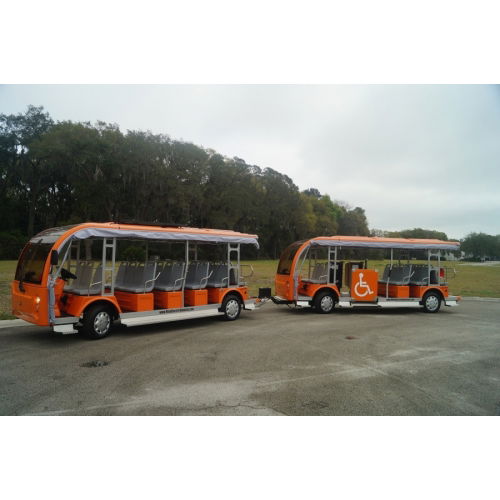

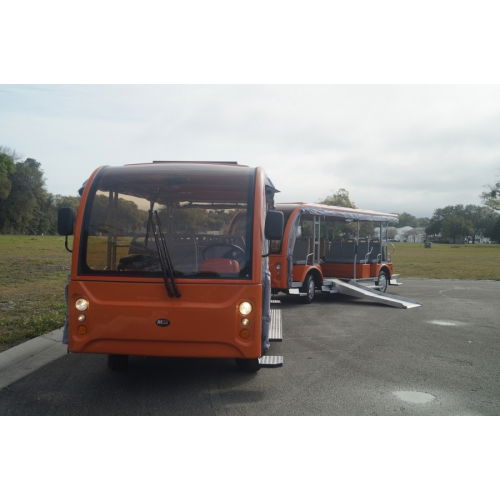

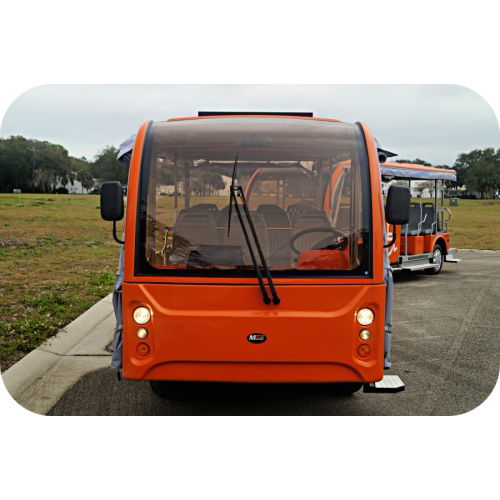

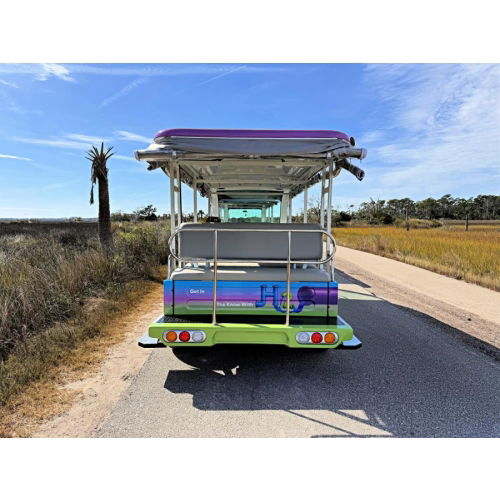

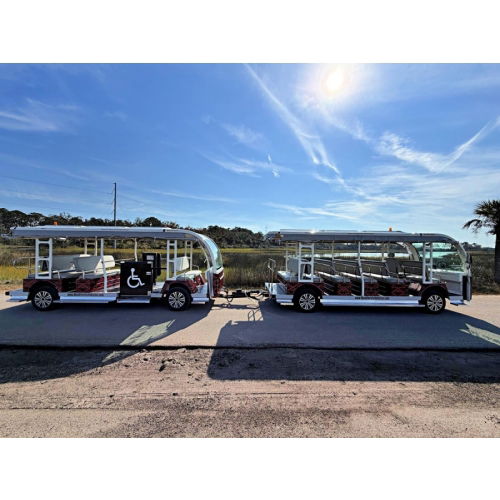

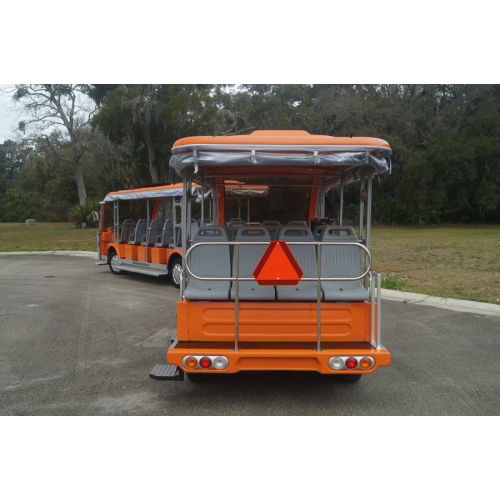

MotoEV Electro Transit Buddy 40 Passenger + 1 Wheelchair Electric Tram

SKU # ETB-40PWCH
$ 107,995.00

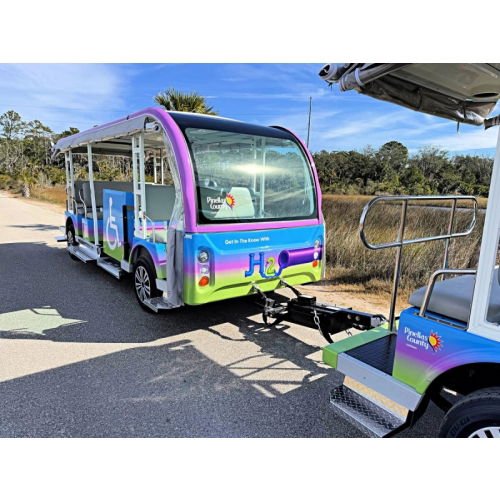

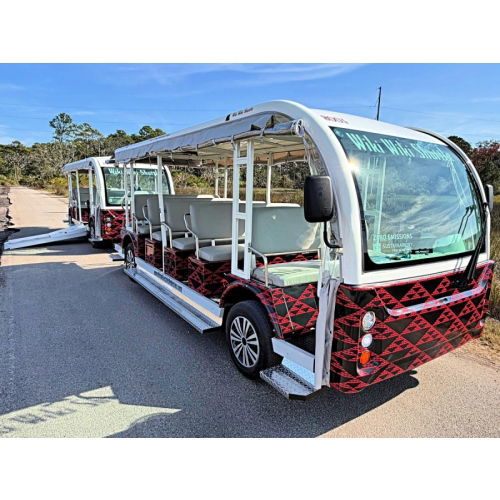

The MotoEV Transit Buddy line of vehicles are for those shuttle chores required around your Campus, Parking Lot, Town Center, Resort, or Facility. Some of these models may hold up to 46 passengers when our tag along trailer is purchased!

Call or Contact for More Information: 855-339-8333

Loading Form..
DESCRIPTION

The MotoEV Transit Buddy line of vehicles are for those shuttle chores required around your Campus, Parking Lot, Town Center, Resort, or Facility. Some of these models may hold up to 46 passengers when our tag along trailer is purchased! With this option, a second bank of batteries can be installed within the trailer to increase travel distances greatly! On your MotoEV Transit Buddy,  we can add many options such as back up cameras, DVD Players, heaters, fans and even air conditioning when necessary! Smaller shuttles have a 48-volt system as a power source with a single battery charger. Our larger shuttles (12-46 Passenger Shuttles) contain two 48 volt systems for the longer range and quicker charging than a 72 volt “series” battery system. Our shuttles come standard with two chargers not one and each charger is responsible to charge only one bank of 48 volts of batteries. This decreases necessary charging time by half versus having one charger responsible for charging all batteries. Several models will qualify for the Low Speed Vehicle standards necessary to drive them on public roadways as well. Please consult a Moto Electric Salesperson for more specific details on this requirement.

Our vehicles can travel an industry leading 50 miles per charge! It costs about one penny per mile traveled if you charge your vehicle overnight, when electric power is at its cheapest! Our built in on board chargers not only keep our batteries ready to go but contain a microprocessor so they will never overcharge. Once a full charge is detected, they simply turn themselves off! You will be able to "opportunity charge" your vehicle at anytime while on a break, shopping or simply at lunch because your charger will be contained right on the vehicle. Our MotoEV Transit Buddy are perfect for any shuttle application that requires use of a vehicle at speeds of 25 miles per hour or less in a clean, quiet, smooth “classy” environmentally friendly setting

Our Transit Shuttle Vehicles come equipped with a 16.6Kw AC (22.3 HP) upgraded motor but several other motor options are available.



NOTE: THE 40 PASSENGER + 1 WHEELCHAIR ELECTRIC TRAM DISPLAYED HAS THE FOLLOWING ACCESSORIES INSTALLED AT AN ADDITIONAL CHARGE:

  • Running Board Package- Driver Side (Lowers Step in Height to 9 Inches)
  • Hard Seat Commercial Package

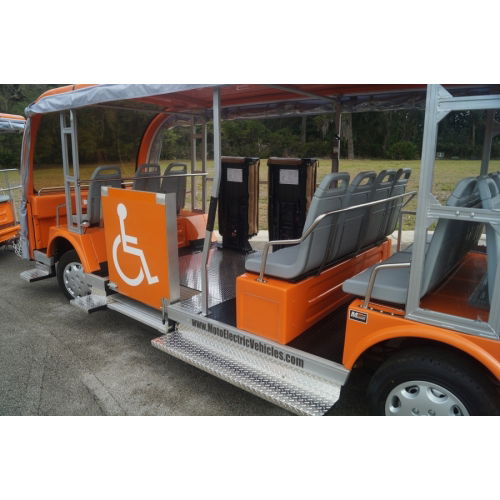

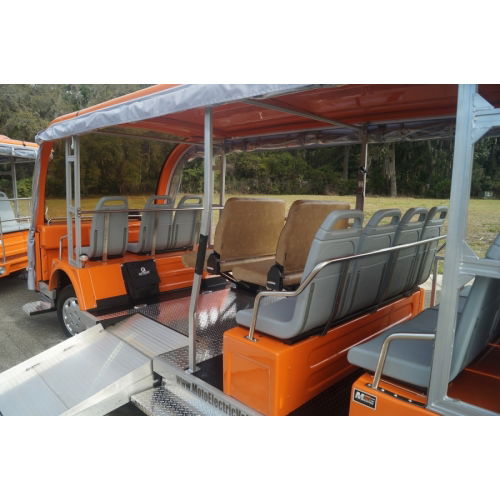

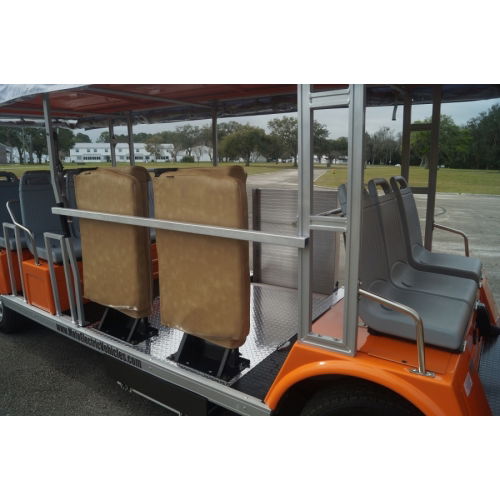

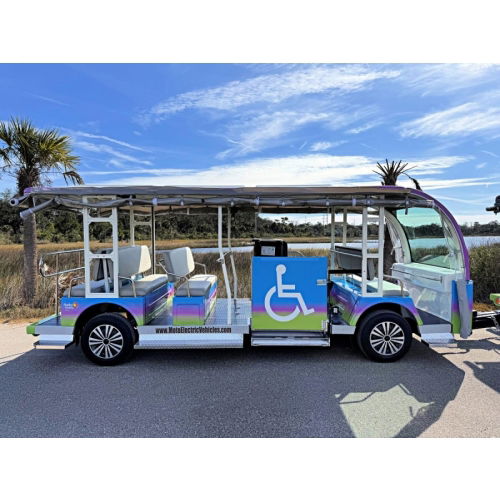

  • ADA Flip Seat x2 in Rear Trailer (Adds 4 Passengers when Wheelchair Not Present)
  • Exit Barrier Package- Passenger Side (Blocks Off Passengers From Entering and Exiting Passenger Side)
  • Window Tint- Front Windshield
  • Air Blower on Dash
  • Soft Vinyl Enclosure
  • Solar Panel on Roof
  • Rear View Mirror Back Up Camera
  • Custom Paint Job
TECHNICAL SPECS
  • Model:ETB-40PWCH
  • Product Code:MotoEV Electro Transit Buddy 40 Passenger + 1 Wheelchair Electric Tram
  • Passenger Capacity:40 People + 1 Wheelchair
  • Vehicle Dimensions:38.0' L X 6.88' W X 7.2' H
  • Gross Vehicle Weight:15,195 Lbs
  • Speed:15 MPH
  • Range:Up to 35 miles *Add Batteries to Trailer to Extend Range*
  • Climb:10% grade (full capacity)
  • Electric Motor:16.6KW (22.3 Hp) AC Motor
  • Min. Turning Radius:26FT
  • Maxload: 10,500 lbs
  • Ground Clearance:5.5
  • Batteries:QTY 24- Trojan 105 or US2200
  • Charger:Eagle On Board- Dual Charging System
  • Braking System:Rear & Front Hydraulic Brakes w/ Rear Mechanical Parking Brake
  • Suspension:MacPherson Strut System
  • Drive:Rear Wheel Drive
  • Body:Steel Framework + Fiberglass
  • Roof:Fiberglass Painted to Match Vehicle
  • Floor: Non- Slip Plastic
  • Windshield:AS1 DOT Approved
  • Warranty:* 3 Year Limited Standard Warranty Included On This Unit!
STANDARD FEATURES
  • DOT AS-1 Certified Windshield
  • Automatic Windshield Wiper
  • Stereo (AM/FM/CD/AUX) w/ Surround Sound
  • Curtis Programmable Sepex Controller on most models
  • Light Package (Head Lights, Tail Lights, Brake Lights,Turn Signals)
  • Horn
  • Deluxe Digital Dashboard
  • Speedometer
  • Battery Capacity Meter
  • High Back Bench Seating
  • 15 Inch Rim and Tire
  • Dual Quick Charge System
  • Power Steering

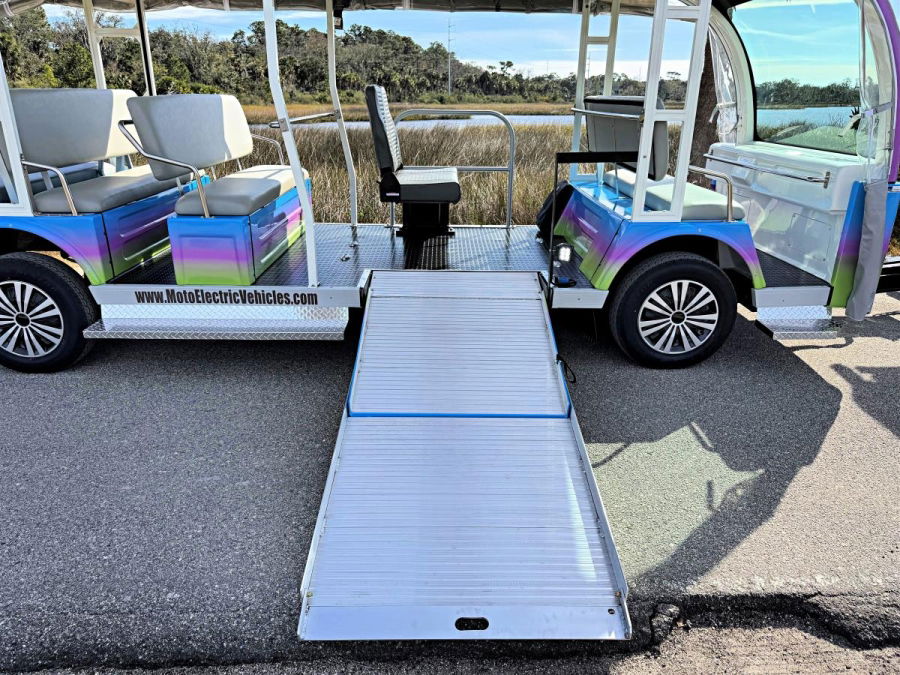

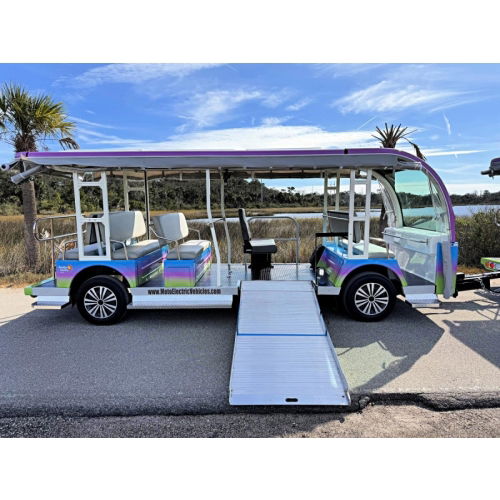

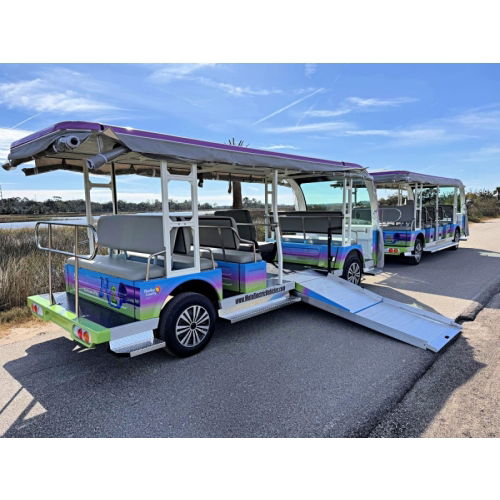

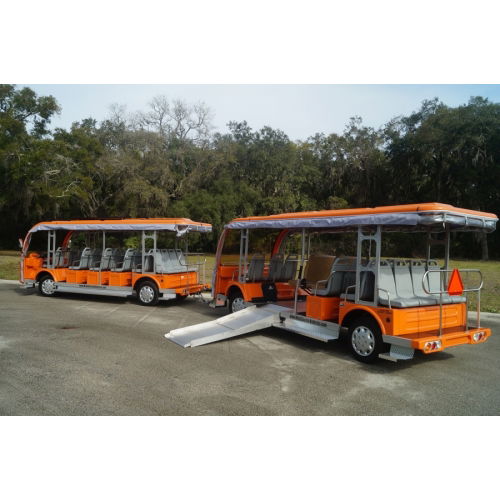

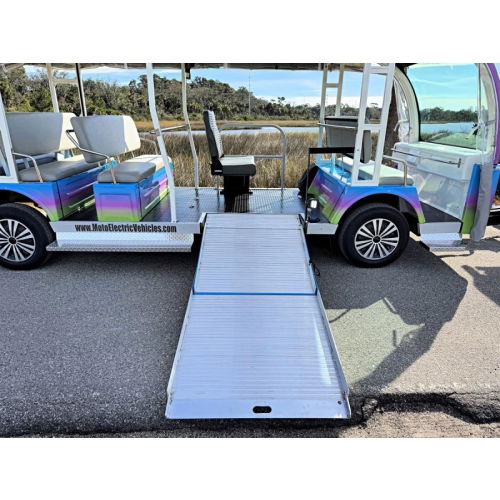

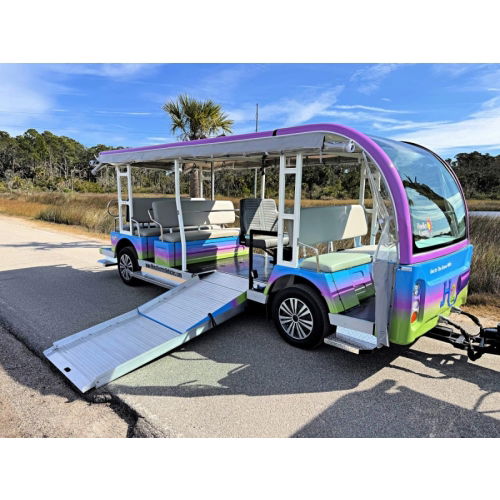

  • Underfloor Pocket ADA Ramp
  • Q'Straint Tie Downs and Buckles Included
  • Ramp Light
  • Quick Ramp Release Technology Included

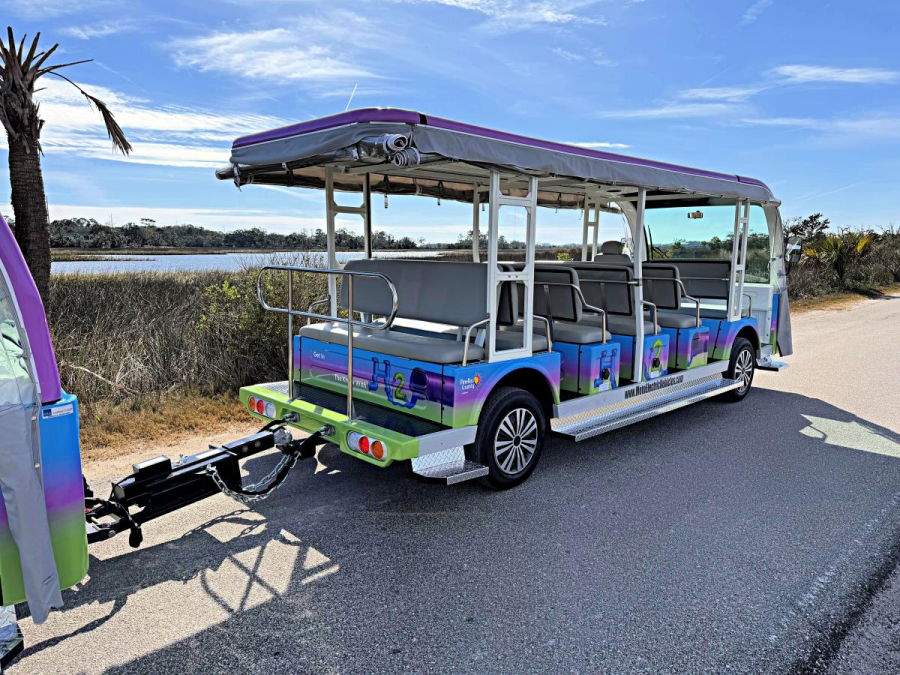

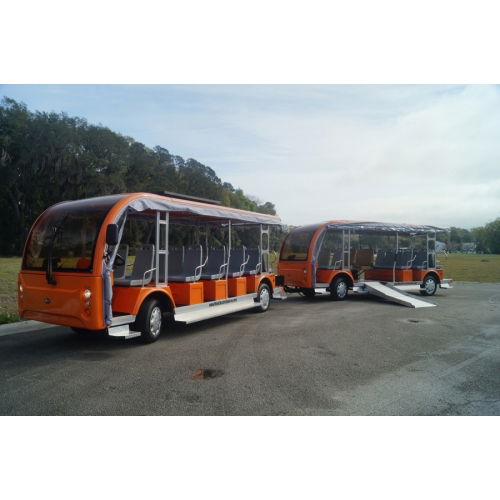

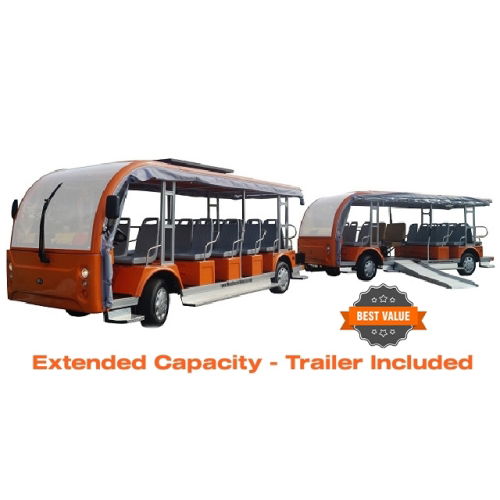

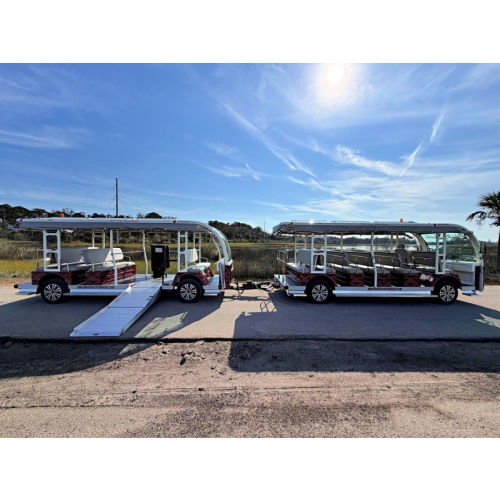

  • Quick Connect Trailer Included
  • Trailer Wire Harness Included for Lights and Sound System
