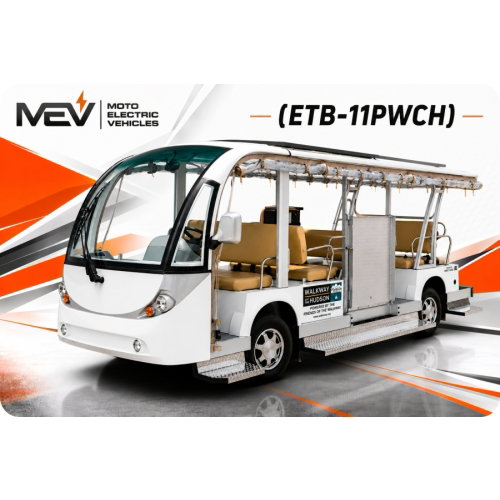

MotoEV Electro Transit Buddy 11 Passenger Wheelchair Shuttle

SKU # ETB-11PWCH
$ 48,995.00

Our fine line of MotoEV Transit Buddy ADA Shuttles offer several models which will serve those who need the ability to carry wheelchair passengers as well.

Call or Contact for More Information: 855-339-8333

Loading Form..
DESCRIPTION

MotoEV Transit Buddy Wheelchair Accessible Shuttle Series

The MotoEV Transit Buddy Wheelchair Accessible Shuttle Series is engineered to provide safe, reliable, and environmentally friendly transportation for passengers of all mobility levels. Designed specifically for campuses, resorts, hospitals, rehabilitation centers, senior living communities, hotels, municipalities, airports, parking facilities, and mixed-use developments, the ETB-11PWCH combines dependable electric performance with enhanced accessibility, ensuring every passenger can travel comfortably and with dignity.

Featuring an integrated ADA-inspired wheelchair ramp system, the ETB-11PWCH provides convenient boarding and unloading for passengers utilizing wheelchairs or other mobility assistance devices. The spacious interior is thoughtfully configured to maximize passenger comfort while providing secure accommodations for wheelchair users, making it an ideal transportation solution for organizations committed to accessibility and inclusive mobility.

The MotoEV Transit Buddy Wheelchair Accessible Shuttle can be customized with a wide variety of factory-installed options to meet your specific operational needs, including:

  • Backup Camera Systems
  • Running Boards
  • Air Blowers
  • Heaters
  • Custom Vinyl Wraps
  • Company Logos & Branding
  • Passenger Restraint Options
  • Interior Safety Lighting
  • And Much More!

Advanced Electric Powertrain

Unlike many competitive electric shuttles, MotoEV utilizes an advanced battery architecture designed for maximum efficiency, dependable performance, and reduced charging time. Transit Buddy models feature a proven 72-volt electric drive system with an onboard smart charger. Every shuttle comes equipped with an automatic Forward/Reverse drive selector, providing smooth, intuitive operation that makes driving simple and safe for virtually any operator.

Industry-Leading Efficiency

The MotoEV Transit Buddy Wheelchair Accessible Shuttle delivers outstanding operating efficiency with a driving range of up to 200 miles per charge when equipped with the optional lithium battery package. With operating costs averaging approximately one cent per mile, organizations benefit from dramatically lower fuel and maintenance expenses compared to traditional gasoline or diesel shuttle vehicles.

Each vehicle features an intelligent onboard smart charger utilizing advanced microprocessor-controlled charging technology. Once the batteries reach full charge, the system automatically stops charging to help maximize battery life and protect against overcharging.

Because the charger is permanently mounted onboard, operators can conveniently recharge the vehicle whenever a standard 110V, 20-amp electrical outlet is available. Opportunity charging during breaks, shift changes, or while parked helps maximize vehicle availability throughout the day.

Built for Accessible Everyday Transportation

Designed with passenger comfort, accessibility, and reliability in mind, the MotoEV Transit Buddy Wheelchair Accessible Shuttle provides smooth acceleration, whisper-quiet operation, zero tailpipe emissions, and travel speeds of up to 18 MPH. Its low operating noise and environmentally friendly electric drivetrain make it an excellent choice for pedestrian-friendly environments where comfort and sustainability are priorities.

The integrated wheelchair ramp allows passengers with mobility challenges to board and exit safely and efficiently, promoting independence while reducing boarding times for drivers and attendants. Whether transporting guests, residents, patients, employees, students, or visitors, the ETB-11PWCH delivers dependable, inclusive transportation that enhances accessibility without compromising comfort or performance.

Powered by a durable 7.5 kW AC (10.1 HP) electric motor as standard equipment, the MotoEV ETB-11PWCH provides reliable performance for daily shuttle operations. Additional motor and battery configurations are available to meet specialized application requirements, ensuring your vehicle is tailored to your organization's unique transportation needs.

TECHNICAL SPECS
  • Model:MotoEV Electro Transit Buddy 11 Passenger Wheelchair Shuttle
  • Product Code:ETB-11PWCH
  • Max Passanger Capacity:11 People + 1 Wheelchair
  • Vehicle Dimensions:195" x 74" W x 80" H
  • GVWR Weight:5,545 Lbs
  • Speed:Up to 18 MPH
  • Range:Up to 50 miles- Lead Acid | Up to 200 miles- w/ Lithium Option Added (full capacity)
  • Climb:20% grade (full capacity)
  • Electric Motor:7.5kw AC Motor (10.1 hp)
  • Controller:1238 Curtis Controller
  • Turning Radius:18'
  • Steering System:Rack and Pinion with Electric Power Steering
  • Maxload: 2,932 Lbs
  • Ground Clearance:6.5"
  • Batteries:QTY 12 6v Lead Acid (Standard)
  • Charger:72v Dual Pro Eagle Charger
  • Braking:4 Wheel Hydraulic Braking System w/ Parking Brake
  • Suspension:Independent (Front) / Fixed Axle w/ Leaf Springs (Rear)
  • Drive:Rear Wheel Drive
  • Body:Coated Steel Chassis w/ Injected Molded Plastic Body
  • Roof:Fiberglass Painted to Match Vehicle
  • Windshield:AS1 DOT Approved
  • Warranty:* 3/4 Year Limited Standard Warranty Included On This Unit! (Lithium Battery Option = 4 Years / Standard Lead Acid Batteries = 3 Years)
  • Length:195"
  • Width w/ Mirrors Folded In:69"
  • Width w/ Mirrors Extended:74"
  • Height:80"
  • Ground Clearance - Middle of Vehicle:14"
  • Ground Clearance - Rear of Vehicle (Differential):6.5"
  • Ground Clearance - Front of Vehicle (Tension Rod Assembly):8.5"
  • Wheelbase (Front Tire Center to Rear Tire Center):105.5"
  • Front and Rear Track Width (LH Tire Center to RH Tire Center):48"
  • Front Overhang (Center of Front Tire to Front Bumper):45"
  • Rear Overhang (Center of Rear Tire to Rear Bumper):46"
  • Net Weight of Electric Vehicle without Battery and Charger:1,829 Lbs
  • Max Loading Weight:2,932 Lbs
  • Battery and Charger Weight:784 Lbs
  • Total Gross Vehicle Weight Rating (GVWR):5,545 Lbs
STANDARD FEATURES
  • DOT AS-1 Certified Windshield
  • Automatic Windshield Wiper
  • Marine Grade Blue Tooth Sound Bar
  • Wireless Headset Microphone w/ Aux Output for Speaker Bar
  • LED Headlights, Tail Lights, Brake Lights, Turn Signals, Fog Lights, and Reverse Light
  • Deluxe Digital Dashboard with Speedometer, Odometer, Volt Meter, Amp Meter
  • Battery Meter
  • Horn
  • Side and Rear View Mirrors
  • 12 Inch DOT Tires with Aluminum Wheels
  • Electric Power Steering
  • Parking Brake
  • Manual Bi-Fold Wheelchair Ramp w/ Three Point Locking System
  • Q'Straint Tie Downs and Buckles Included
  • Driver Side Wheelchair Gate Included
  • Automatic illuminated Wheelchair Ramp Light
  • Easy Access Diagnostic Port for Parameter Adjustments and Fault Code Readings
