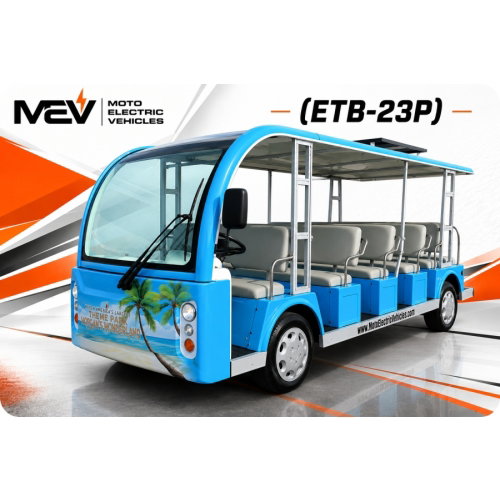

MotoEV Electro Transit Buddy 23 Passenger Shuttle

SKU # ETB-23P
$ 59,995.00

The MotoEV Transit Buddy line of vehicles is for those shuttle chores required around your Campus, Parking Lot, Town Center, Resort, or Facility. Some of these models may hold up to 46 passengers when our tag along trailer is purchased!

Call or Contact for More Information: 855-339-8333

Loading Form..
DESCRIPTION

MotoEV Transit Buddy Shuttle Series

The MotoEV Transit Buddy 23 Passenger Electric Shuttle is engineered to provide reliable, efficient, and environmentally friendly transportation for campuses, resorts, hotels, municipalities, airports, parking facilities, industrial complexes, hospitals, universities, entertainment venues, and mixed-use developments. Designed for maximum passenger capacity, superior comfort, and low operating costs, the 23 Passenger Transit Buddy delivers a dependable solution for moving larger groups safely and efficiently.

For operations requiring even greater passenger capacity, the 23 Passenger Transit Buddy can be paired with MotoEV's optional tag-along passenger trailer, allowing total passenger capacity of up to 46 passengers. The trailer can also be equipped with an optional auxiliary battery bank to significantly increase driving range while maintaining dependable performance throughout the workday.

The MotoEV Transit Buddy 23 Passenger Electric Shuttle can be customized with a wide variety of factory-installed options to meet your specific operational requirements, including:

  • Backup Camera Systems
  • Running Boards
  • Air Blowers
  • Heaters
  • Custom Vinyl Wraps
  • Company Logos
  • Additional Safety Equipment
  • And Much More!

Advanced Electric Powertrain

Unlike many competitive electric shuttles, MotoEV utilizes an advanced battery architecture engineered for maximum efficiency, long service life, and reduced charging time. The Transit Buddy 23 Passenger Shuttle features a dependable 72-volt electric drive system with an onboard smart charger. Every Transit Buddy is equipped with an automatic drive system utilizing a simple Forward/Reverse selector, making operation safe, intuitive, and easy for virtually any operator.

Industry-Leading Efficiency

The MotoEV Transit Buddy 23 Passenger Electric Shuttle delivers exceptional operating efficiency with a driving range of up to 150 miles per charge when equipped with the optional lithium battery and charger package. With charging costs averaging approximately one cent per mile, it provides one of the most economical passenger transportation solutions available.

Each Transit Buddy comes equipped with an intelligent onboard smart charger featuring advanced microprocessor-controlled charging technology. Once the batteries reach full charge, the charger automatically shuts off to maximize battery life while preventing overcharging.

Because the charger is permanently mounted onboard, operators can conveniently recharge the shuttle whenever a standard 110V, 20-amp dedicated outlet is available. Opportunity charging during employee breaks, lunch periods, shift changes, or while the vehicle is parked helps maximize uptime and extend daily operating range.

Built for High-Capacity Passenger Transportation

With smooth acceleration, whisper-quiet operation, zero tailpipe emissions, and speeds of up to 18 MPH, the MotoEV Transit Buddy 23 Passenger Electric Shuttle is ideal for facilities that require safe, comfortable, and sustainable transportation for larger groups. Its spacious design provides easy passenger access while maintaining excellent maneuverability for operation in pedestrian-friendly environments.

The MotoEV Transit Buddy 23 Passenger Electric Shuttle is powered by a durable 15 KW AC (20.1 HP continuous-duty) electric motor as standard equipment, delivering reliable, low-maintenance performance for demanding daily shuttle operations. Additional motor configurations and factory-installed options are available to meet specialized operational requirements, ensuring the Transit Buddy can be tailored to virtually any passenger transportation application.

TECHNICAL SPECS
  • Model:MotoEV Electro Transit Buddy 23 Passenger Shuttle
  • Product Code:ETB-23P
  • Max Passanger Capacity:23 People + 1 Driver
  • Vehicle Dimensions:216" L x 81" W x 90" H
  • GVWR Weight:9,437 Lbs
  • Speed:Up to 18 MPH
  • Range:Up to 50 miles- Lead Acid | Up to 150 miles- w/ Lithium Option Added (full capacity)
  • Climb:15% grade (full capacity)
  • Electric Motor:15KW AC Motor (20.1HP Continuous)
  • Controller:1238 Curtis Controller
  • Turning Radius:30'
  • Steering System:Steering Gear Box with Electric Power Steering
  • Maxload: 4,310 Lbs
  • Ground Clearance:4"
  • Batteries:QTY 24 6v Lead Acid
  • Charger:QTY 2 72v Dual Pro Eagle Charger
  • Braking:4 Wheel Hydraulic Braking System w/ Air Pump Assist and Parking Brake
  • Suspension:Fixed Axle w/ Heavy Duty Leaf Spring (Front and Rear)
  • Drive:Rear Wheel Drive
  • Body:Coated Steel Chassis w/ Injected Molded Plastic Body
  • Roof:Injected Molded Plastic Painted to Match Vehicle
  • Windshield:AS1 DOT Approved
  • Warranty:* 3/4 Year Limited Standard Warranty Included On This Unit! (Lithium Battery Option = 4 Years / Standard Lead Acid Batteries = 3 Years)
  • Charger Requirements:110v 20 Amp Outlet (Dedicated)
  • Length:216"
  • Width w/ Mirrors Folded In:75"
  • Width w/ Mirrors Extended:81"
  • Height:90"
  • Ground Clearance - Middle of Vehicle:14"
  • Ground Clearance - Rear of Vehicle (Differential):4.5"
  • Ground Clearance- Front of Vehicle (Leaf Spring Bolt):4"
  • Wheelbase (Front Tire Center to Rear Tire Center):135"
  • Front and Rear Track Width (LH Tire Center to RH Tire Center):63"
  • Front Overhang (Center of Front Tire to Front Bumper):44"
  • Rear Overhang (Center of Rear Tire to Rear Bumper):38"
  • Net Weight of Electric Vehicle without Battery and Charger:3,559 Lbs
  • Max Loading Weight:4,310 Lbs
  • Battery and Charger Weight:1,568 Lbs
  • Total Gross Vehicle Weight Rating (GVWR):9,437 Lbs
STANDARD FEATURES
  • DOT AS-1 Certified Windshield
  • Automatic Windshield Wiper
  • Marine Grade Blue Tooth Sound Bar
  • Wireless Headset Microphone w/ Aux Output for Speaker Bar
  • LED Headlights, Tail Lights, Brake Lights, Turn Signals, Fog Lights, and Reverse Light
  • Deluxe Digital Dashboard with Speedometer, Odometer, Volt Meter, Amp Meter
  • Battery Meter
  • Horn
  • Side and Rear View Mirrors
  • 15 Inch Steel Wheel with/ Decorative Hubcap
  • Electric Power Steering
  • 4 Wheel Hydraulic Braking System w/ Air Pump Assist
  • Parking Brake
  • Easy Access Diagnostic Port for Parameter Adjustments and Fault Code Readings
PRODUCT MEDIA

Parking Lot Electric Shuttle Which Holds 23 Passengers and 1 Driver- Moto Electric Vehicles

DOCUMENTS / BROCHURES
Customization & Accessories
