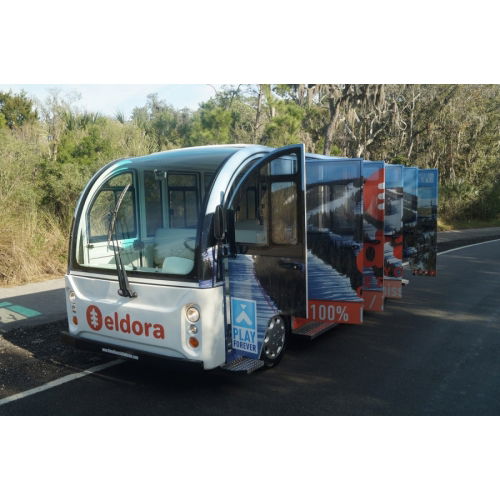

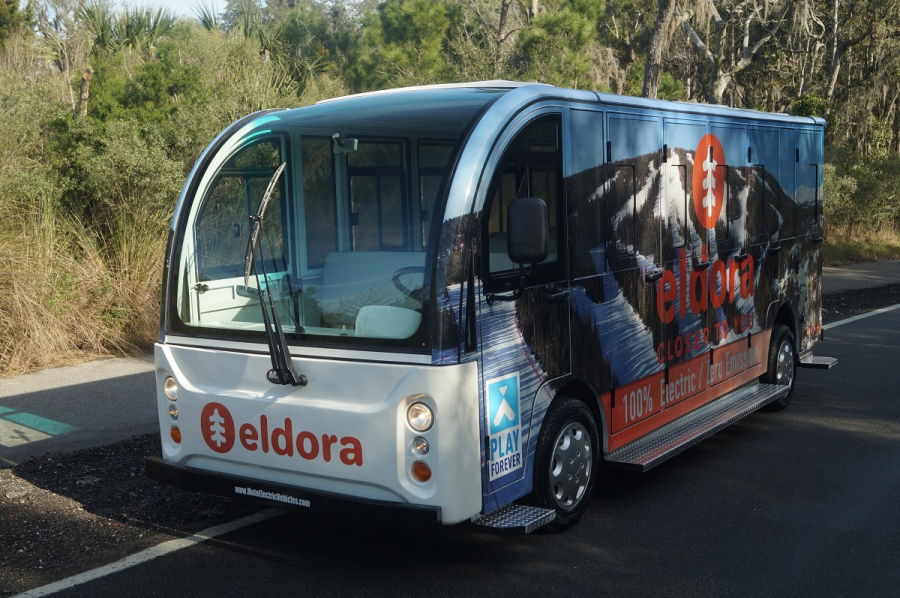

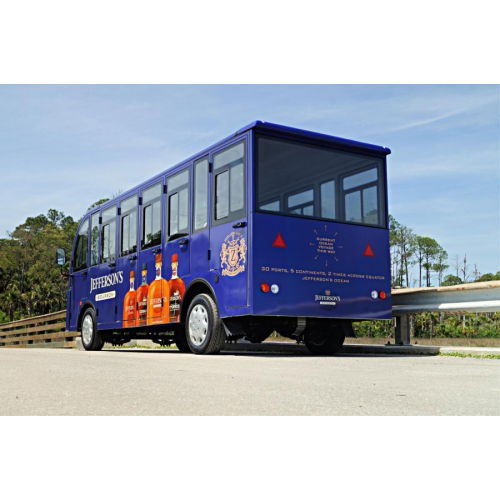

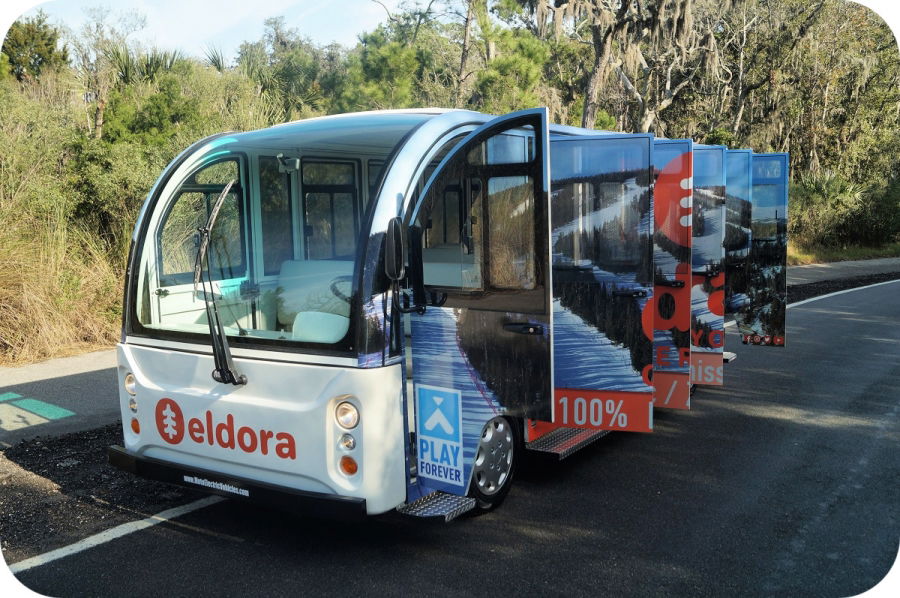

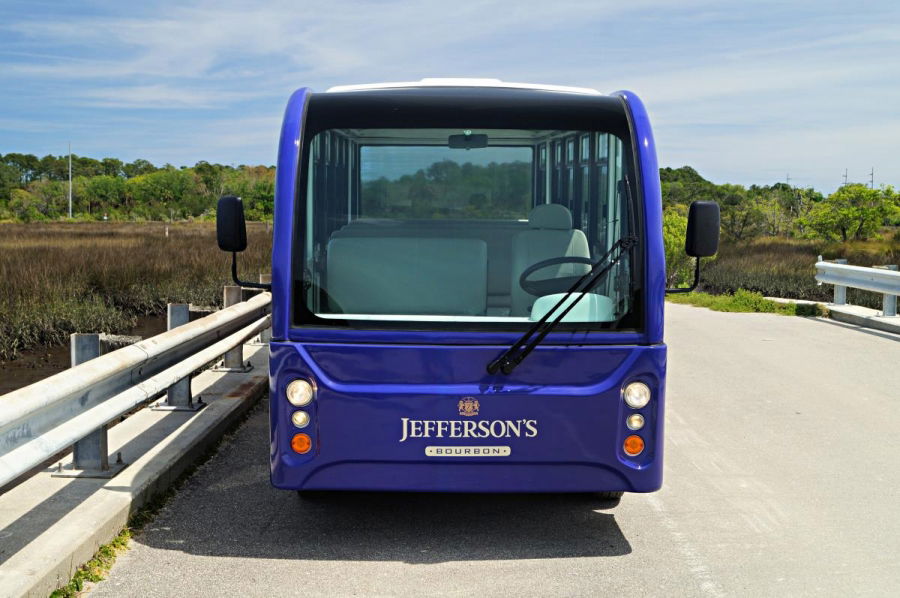

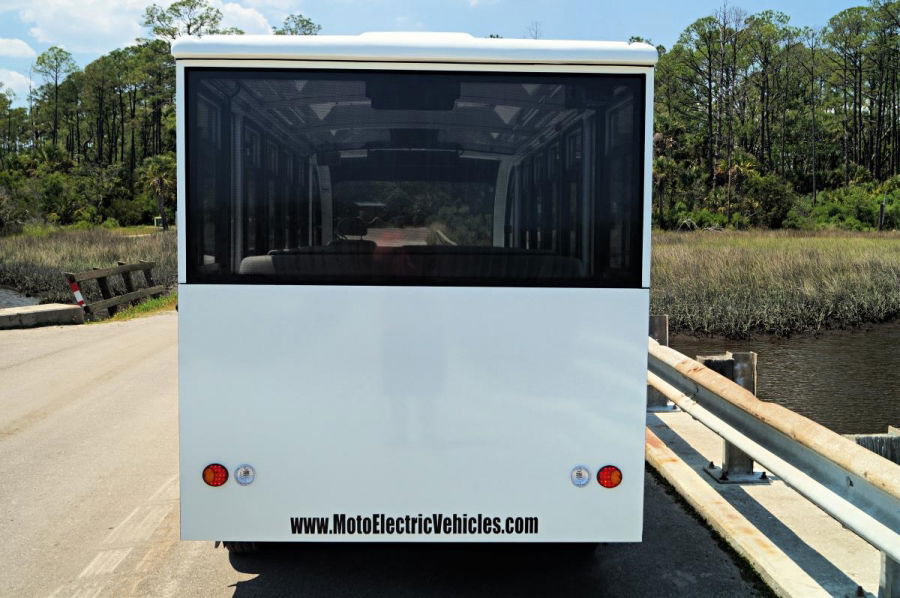

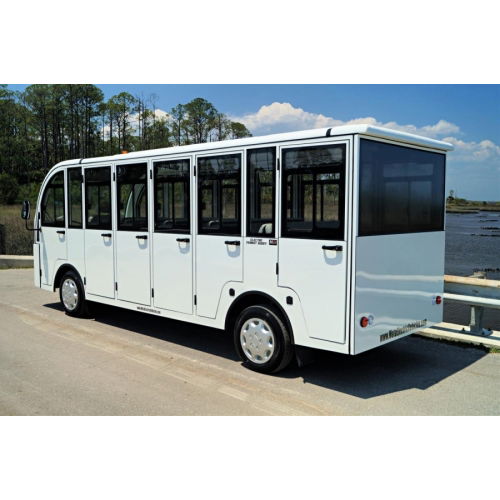

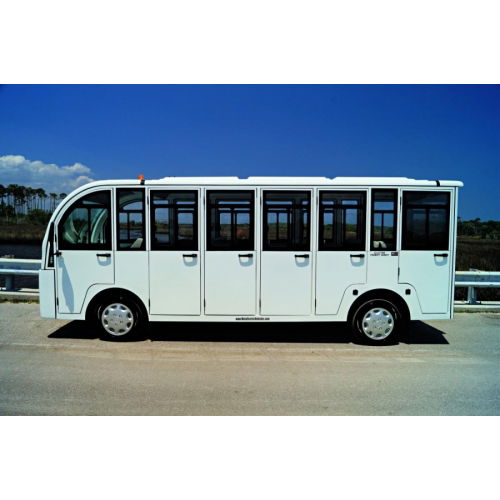

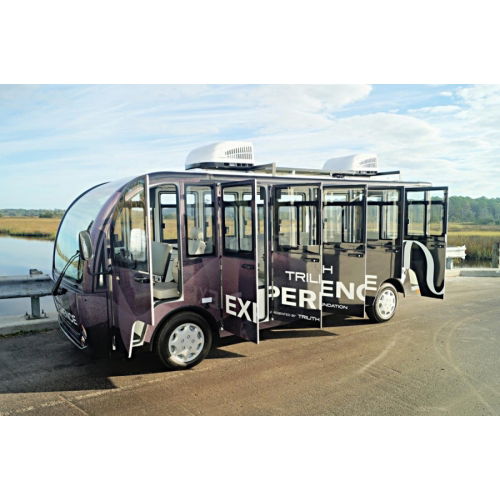

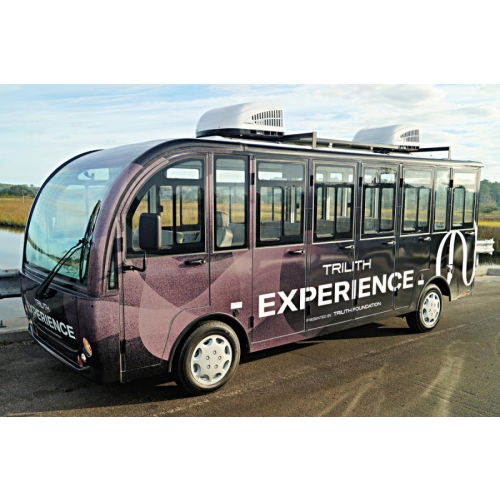

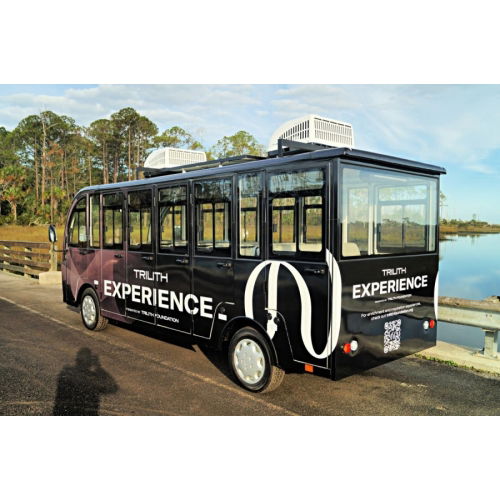

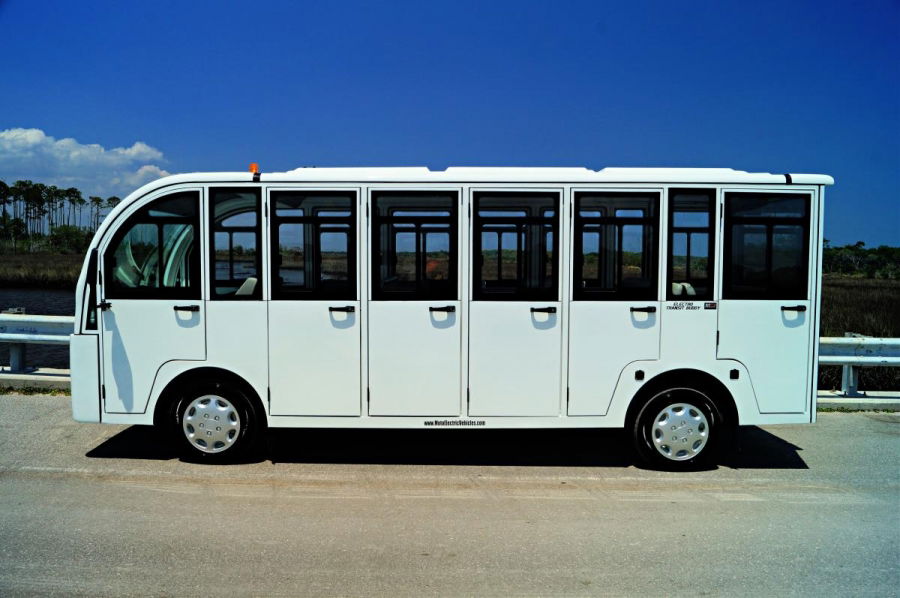

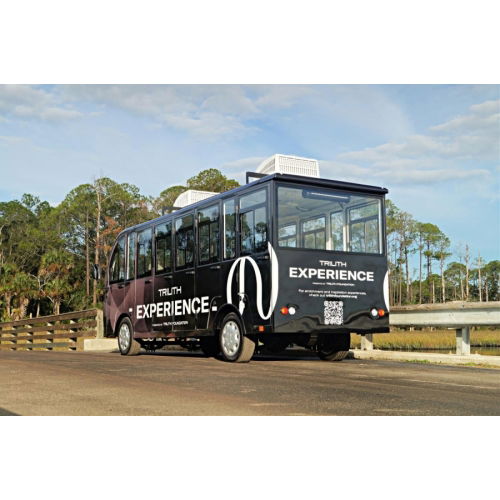

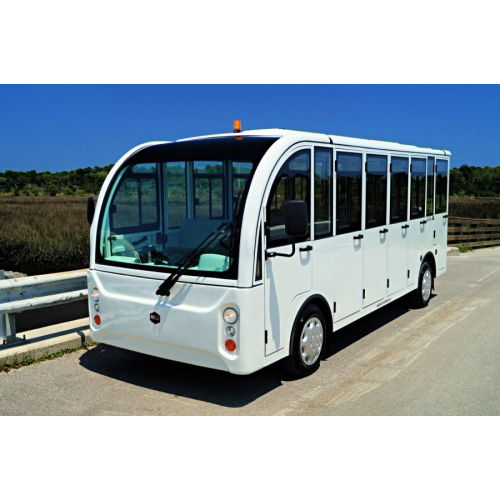

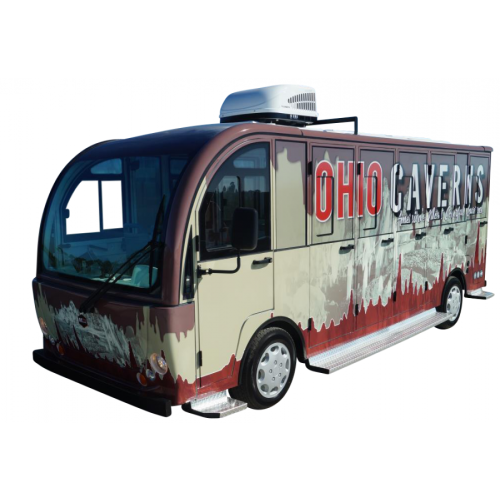

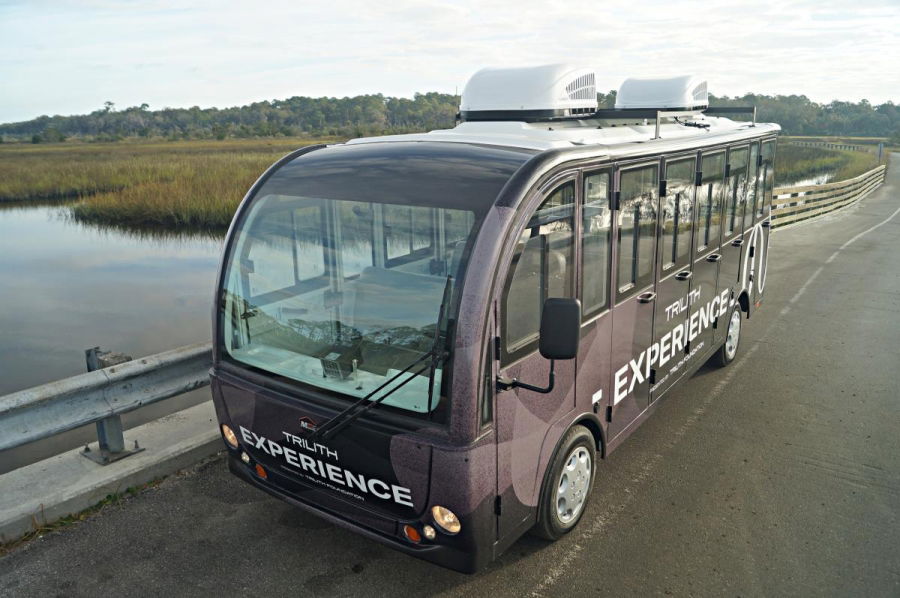

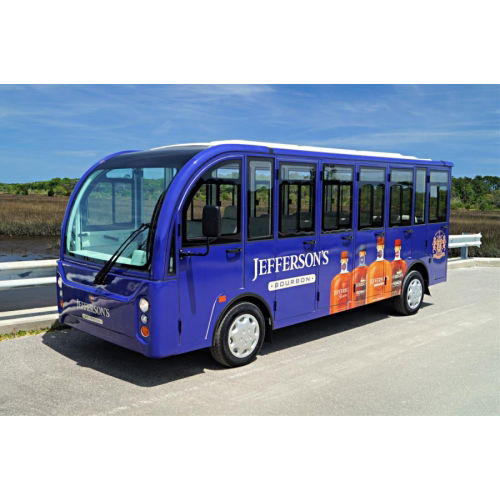

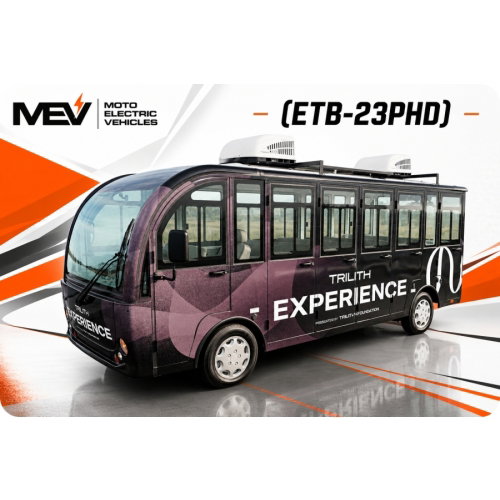

MotoEV Electro Transit Buddy 23 Passenger Shuttle Hard Door

SKU # ETB-23PHD
$ 68,995.00

The MotoEV Transit Buddy line of vehicles are for those shuttle chores required around your Campus, Parking Lot, Town Center, Resort, or Facility. Some of these models may hold up to 46 passengers when our tag along trailer is purchased!

Call or Contact for More Information: 855-339-8333

Loading Form..
DESCRIPTION

MotoEV Transit Buddy Shuttle Series

The MotoEV Transit Buddy series is engineered to provide reliable, efficient, and environmentally friendly transportation for campuses, resorts, hotels, municipalities, parking facilities, industrial complexes, airports, and mixed-use developments. Designed for comfort, performance, and low operating costs, Transit Buddy shuttles offer a dependable solution for transporting passengers safely and efficiently.

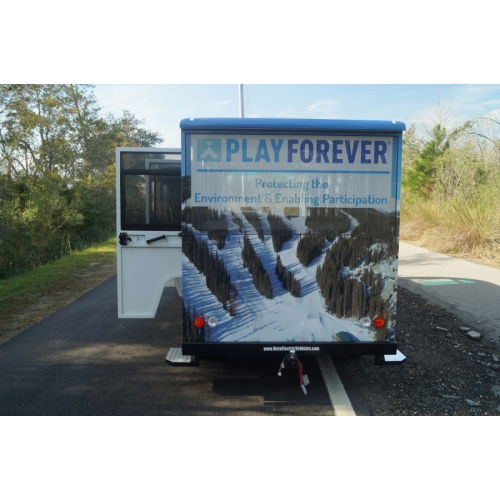

For operations requiring even greater passenger capacity, select Transit Buddy models can accommodate up to 46 passengers when paired with our optional tag-along passenger trailer. This trailer can also be equipped with an additional battery bank, significantly increasing driving range while maintaining exceptional performance throughout the day.

The MotoEV Transit Buddy 23 Passenger Hard Door Electric Shuttle can be customized with a wide variety of factory-installed options to meet your specific operational needs, including:

  • Backup Camera Systems
  • Running Boards
  • Air Blowers
  • Heaters

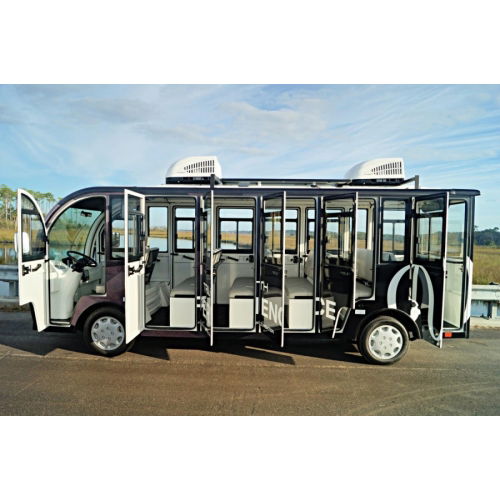

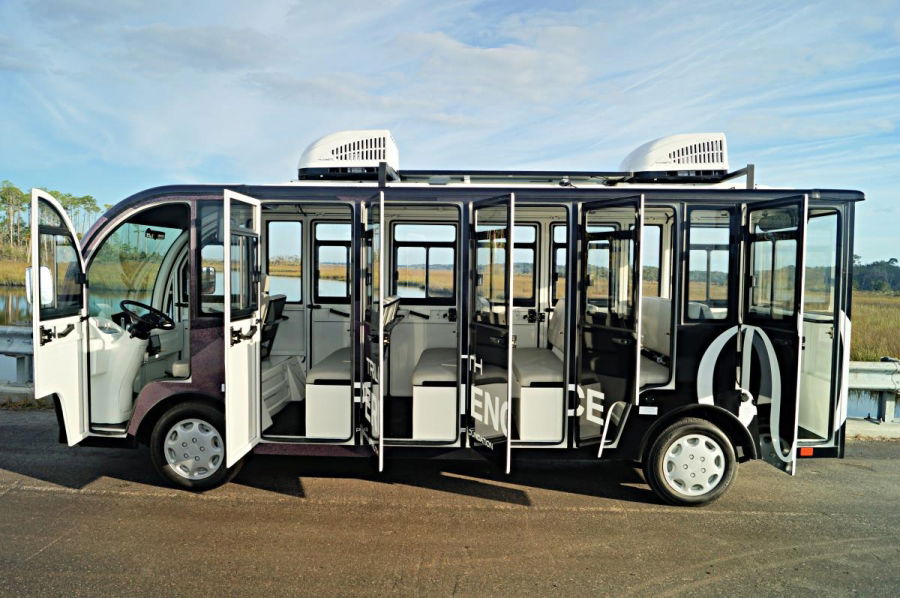

  • Air Conditioning Units

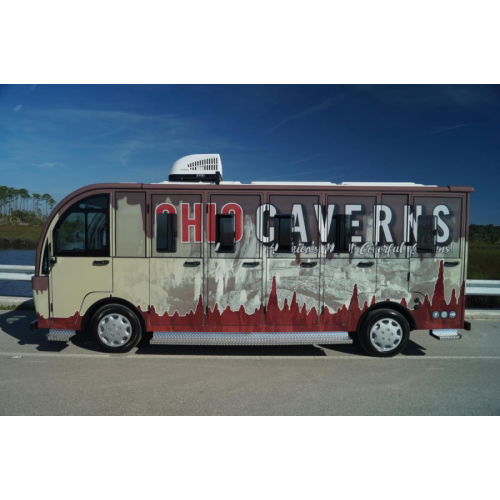

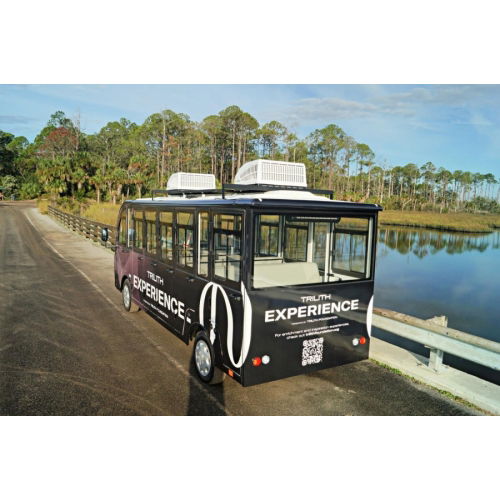

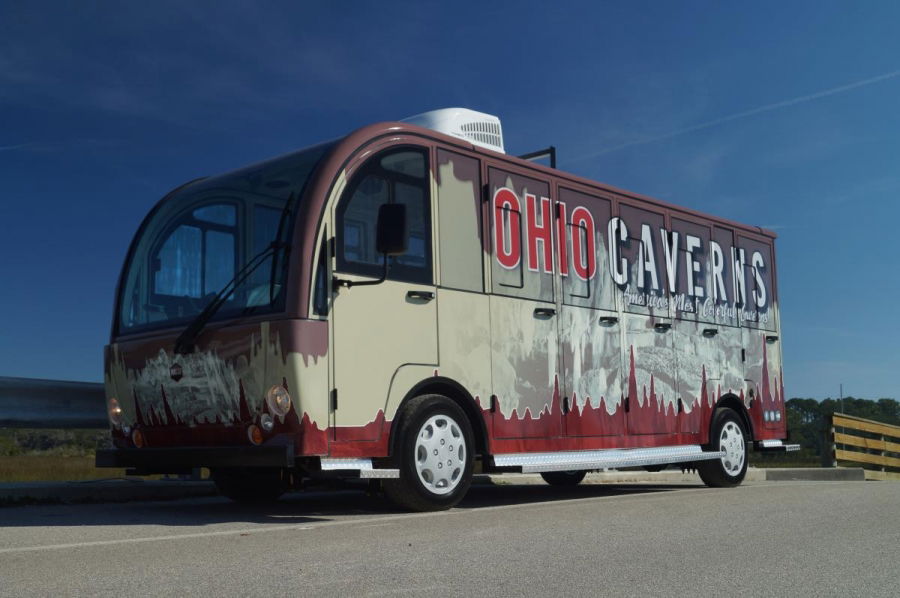

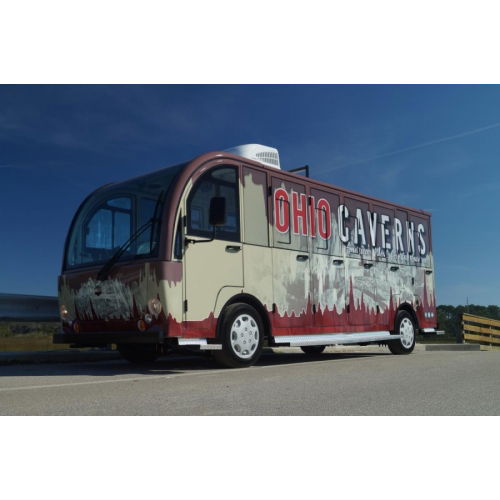

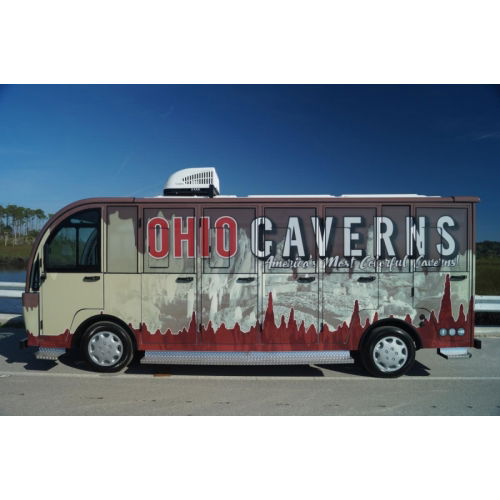

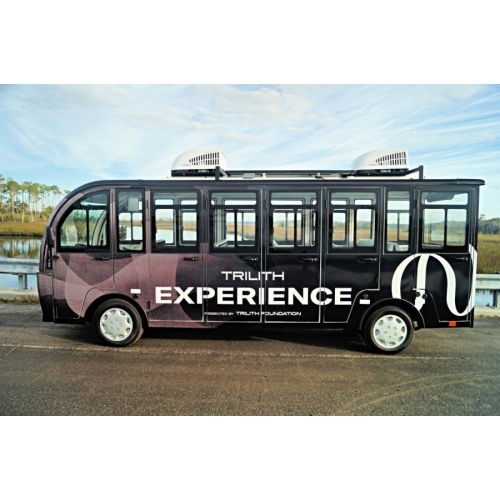

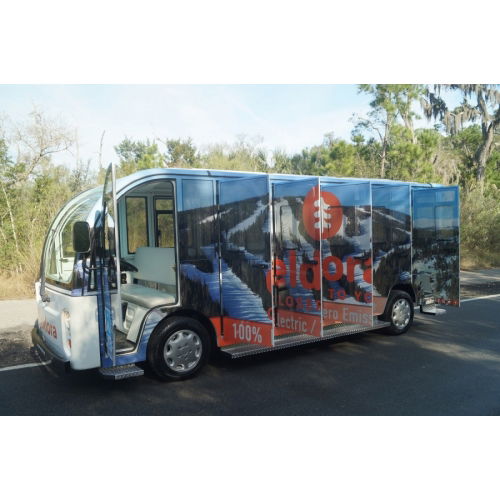

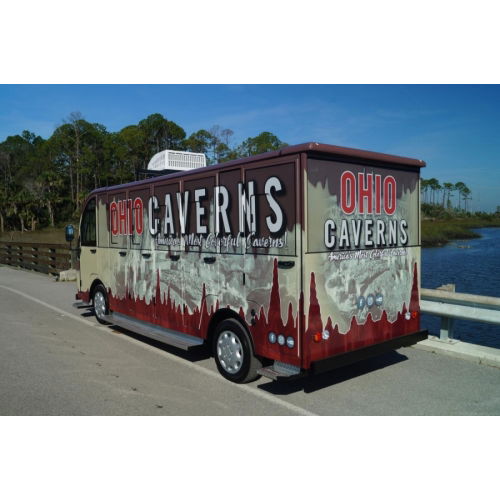

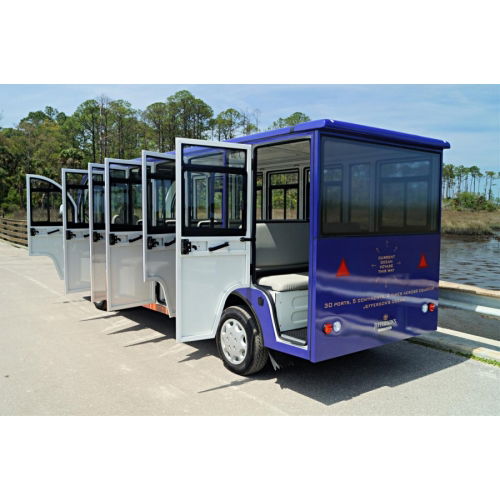

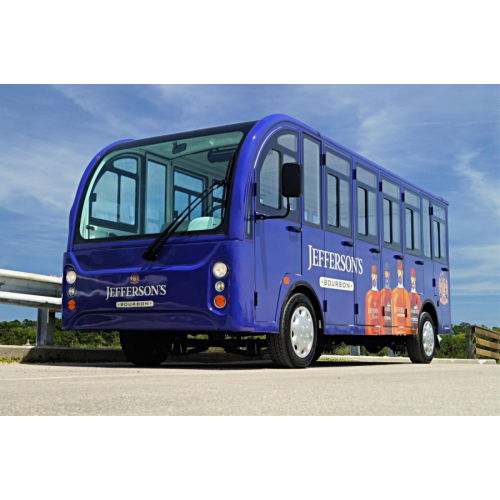

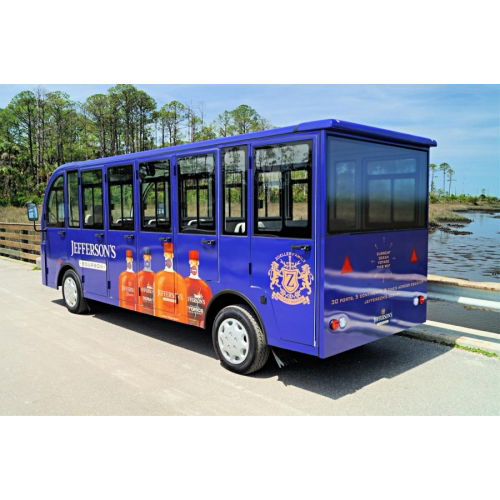

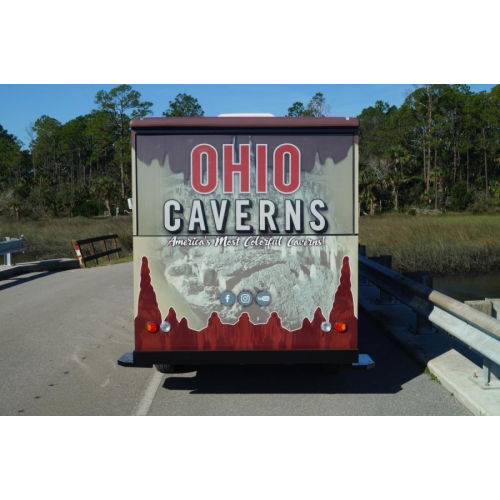

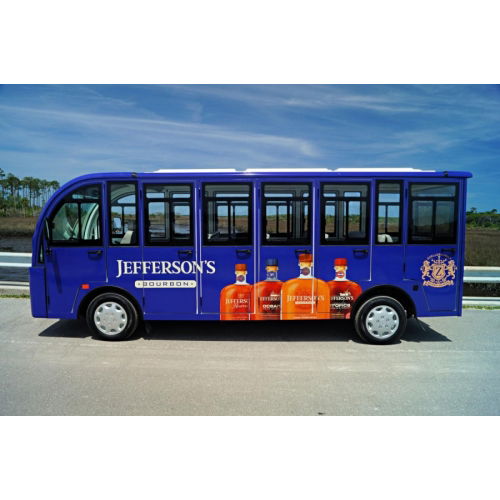

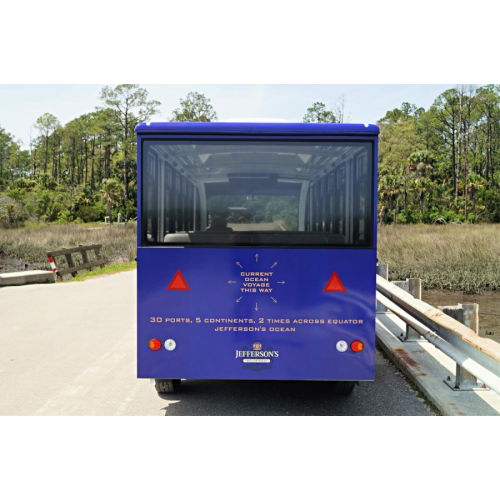

  • Custom Vinyl Wraps
  • Company Logos
  • And Much More!

Advanced Electric Powertrain

Unlike many competitive electric shuttles, MotoEV utilizes an advanced battery architecture designed for maximum efficiency and reduced charging time. Transit Buddy models feature a dependable 72-volt electric drive system with an onboard smart charger. All Transit Buddy models come equipped with an automatic drive system that utilizes a simple Forward/Reverse selector, making operation safe, intuitive, and easy for virtually any driver.

Industry-Leading Efficiency

The MotoEV Transit Buddy delivers exceptional operating efficiency with a driving range of up to 150 miles per charge when equipped with the optional lithium battery and charger package. Charging costs average approximately one cent per mile, making it one of the most economical passenger transportation solutions available.

Every Transit Buddy is equipped with an intelligent onboard smart charger featuring microprocessor-controlled charging technology. Once the batteries reach a full charge, the charger automatically stops charging, helping maximize battery life while preventing overcharging.

Because the charger is permanently installed onboard, operators can conveniently opportunity charge the vehicle whenever a standard electrical outlet is available—during employee breaks, lunch periods, between shifts, or while parked—helping extend operating time throughout the day.

Built for Everyday Shuttle Service

With smooth acceleration, quiet operation, zero tailpipe emissions, and speeds of up to 18 MPH, the MotoEV Transit Buddy is the ideal transportation solution for environments where comfort, safety, and sustainability are priorities.

The MotoEV Transit Buddy 23 Passenger Hard Door Electric Shuttle is powered by a robust 15 KW AC (20.1 HP) electric motor as standard equipment, delivering dependable performance for daily passenger transportation. Additional motor configurations are also available to meet specialized application requirements.

TECHNICAL SPECS
  • Model:MotoEV Electro Transit Buddy 23 Passenger Hard Door
  • Product Code:ETB-23PHD
  • Max Passanger Capacity:23 People + 1 Driver
  • Vehicle Dimensions:220" L x 98" W x 90" H
  • GVWR Weight:10,033 Lbs
  • Speed:Up to 18MPH
  • Range:Up to 50 miles- Lead Acid | Up to 150 miles- w/ Lithium Option Added (full capacity)
  • Climb:15% grade (full capacity)
  • Electric Motor:15KW AC Motor (20.1HP Continuous)
  • Controller:1238 Curtis Controller
  • Turning Radius:30'
  • Steering System:Steering Gear Box with Electric Power Steering
  • Maxload: 4,310 Lbs
  • Ground Clearance:4"
  • Batteries:QTY 24 6v Lead Acid
  • Charger:QTY 2 72v Dual Pro Eagle Charger
  • Braking:4 Wheel Hydraulic Braking System w/ Air Pump Assist and Parking Brake
  • Suspension:Fixed Axle w/ Heavy Duty Leaf Spring (Front and Rear)
  • Drive:Rear Wheel Drive
  • Body:Coated Steel Chassis w/ Injected Molded Plastic Body and Aluminum Doors w/ Windows
  • Roof:Injected Molded Plastic Painted to Match Vehicle
  • Windshield:AS1 DOT Approved
  • Warranty:* 3/4 Year Limited Standard Warranty Included On This Unit! (Lithium Battery Option = 4 Years / Standard Lead Acid Batteries = 3 Years)
  • Charger Requirements:110v 20 Amp Outlet (Dedicated)
  • Length:220"
  • Width w/ Mirrors Folded In:75"
  • Width w/ Mirrors Extended:98"
  • Height:90"

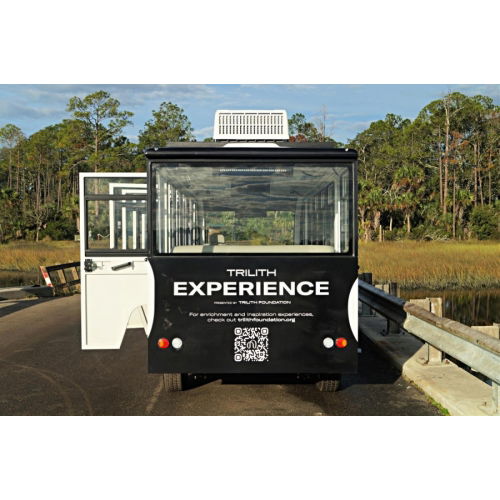

  • Height With AC Unit:102"
  • Ground Clearance - Middle of Vehicle:14"
  • Ground Clearance - Rear of Vehicle (Differential):4"
  • Ground Clearance- Front of Vehicle (Leaf Spring Bolt):4.5"
  • Wheelbase (Front Tire Center to Rear Tire Center):135"
  • Front and Rear Track Width (LH Tire Center to RH Tire Center):63"
  • Front Overhang (Center of Front Tire to Front Bumper):43"
  • Rear Overhang (Center of Rear Tire to Rear Bumper):43"
  • Net Weight of Electric Vehicle without Battery and Charger:4,155 Lbs
  • Max Loading Weight:4,310 Lbs
  • Battery and Charger Weight:1,568 Lbs
  • Total Gross Vehicle Weight Rating (GVWR):10,033 Lbs
STANDARD FEATURES

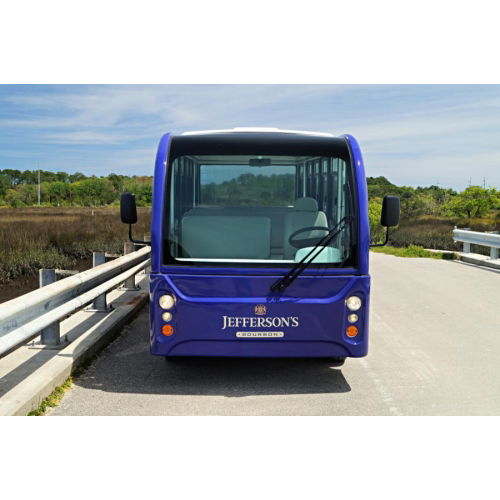

  • DOT AS-1 Certified Windshield
  • Automatic Windshield Wiper
  • Marine Grade Blue Tooth Sound Bar
  • Wireless Headset Microphone w/ Aux Output for Speaker Bar
  • LED Headlights, Tail Lights, Brake Lights, Turn Signals, Fog Lights, and Reverse Light

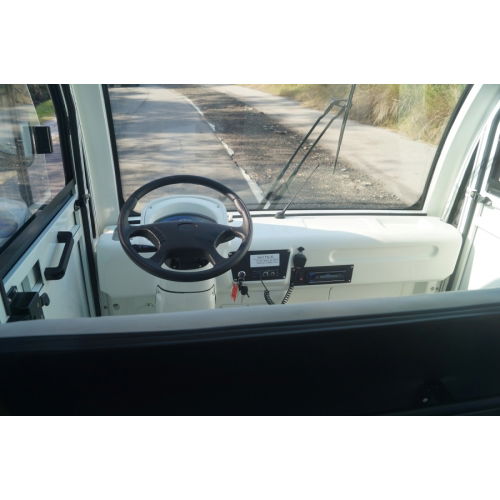

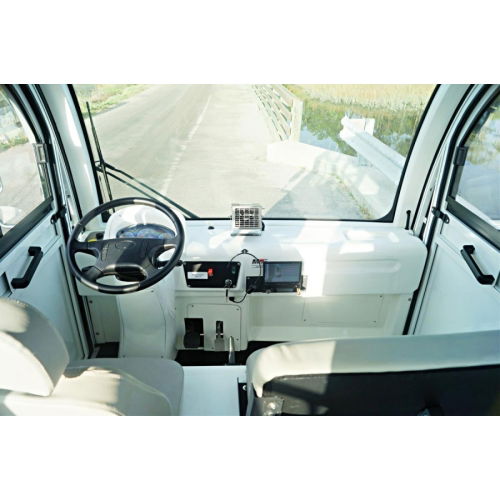

  • Deluxe Digital Dashboard with Speedometer, Odometer, Volt Meter, Amp Meter
  • Battery Meter
  • Horn
  • Side and Rear View Mirrors
  • 15 Inch Steel Wheel with/ Decorative Hubcap

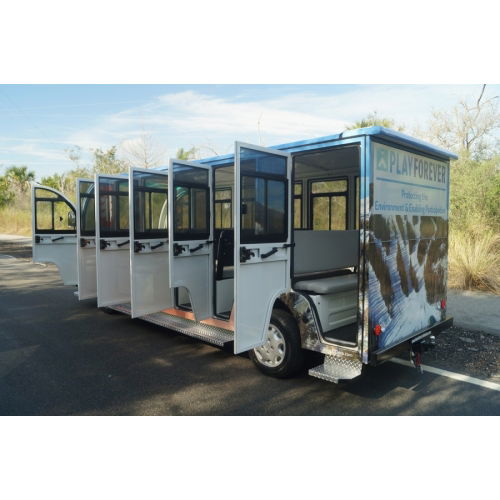

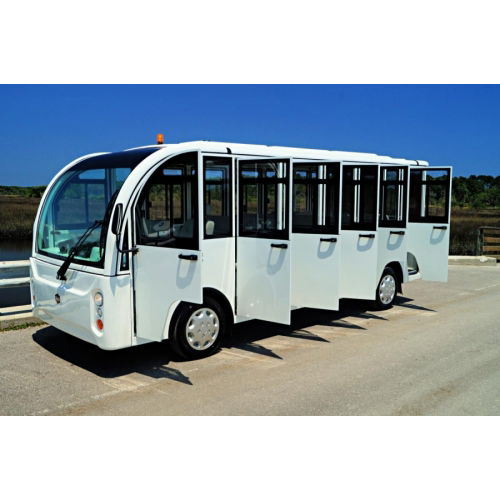

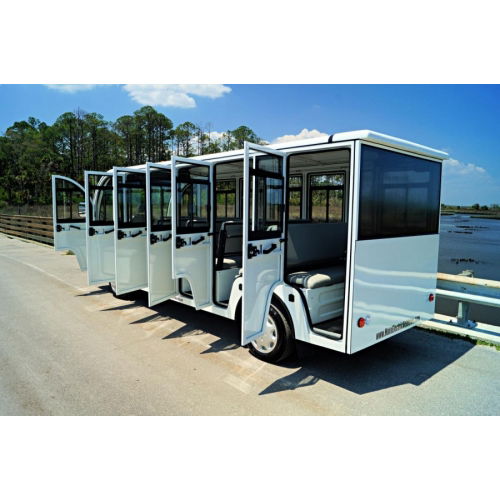

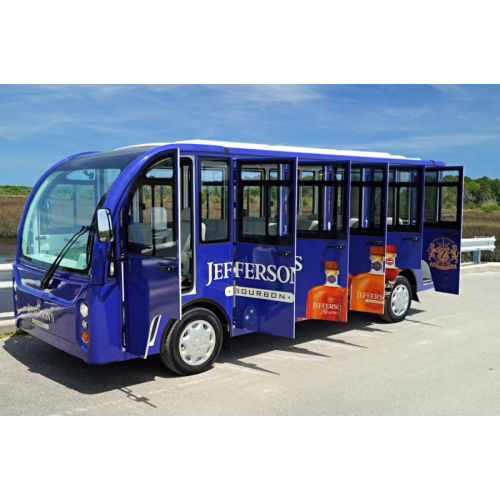

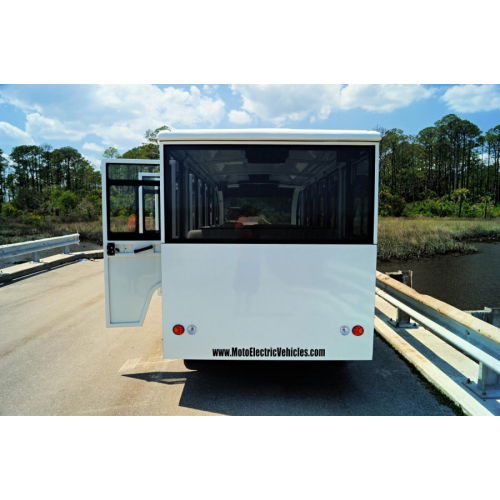

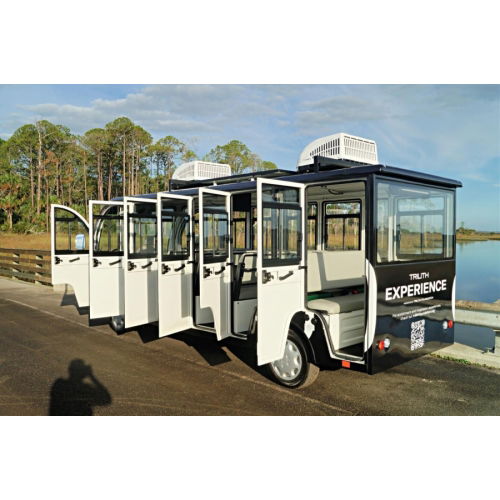

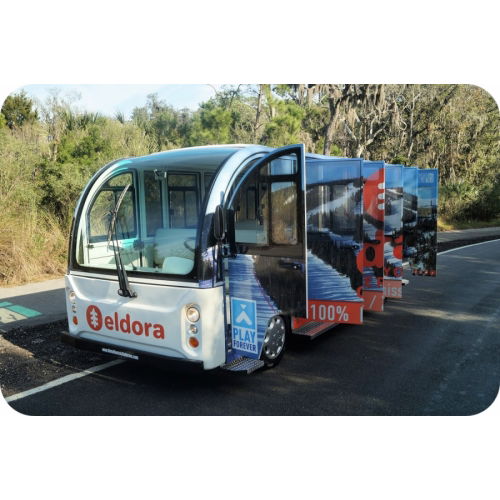

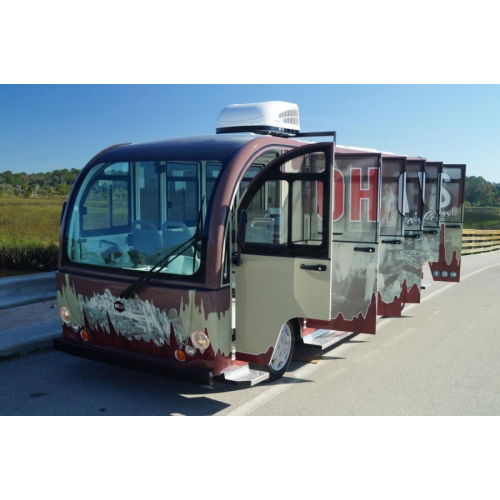

  • Aluminum Doors w/ Sliding Windows and Door Locks * Doors are built to Not be Removed*
  • Electric Power Steering
  • 4 Wheel Hydraulic Braking System w/ Air Pump Assist
  • Parking Brake
  • Easy Access Diagnostic Port for Parameter Adjustments and Fault Code Readings
